1456985-3 | TE Connectivity
Socket, unequipped, 6 pole, straight, 1 row, black, 1456985-3
Order No.: 35P9469
EAN: 4099889889840
MPN:
1456985-3
Unit Price (€ / pc.)
1.7731 € *
Standard delivery time from the manufacturer is: 14 Weeks

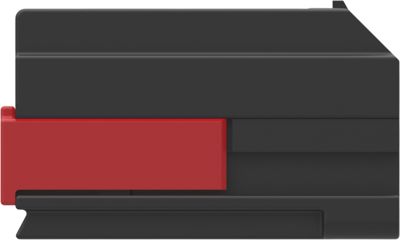

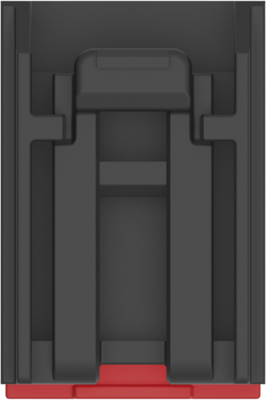

Socket housing, 1456985-3, TE Connectivity
Connector & housing type: housing for female terminals, Connector system: wire-to-board, wire-to-device, Sealable: no, Hybrid connector: no, Primary locking feature: integrated in housing, Number of positions: 6, Number of rows: 1, Body material: PA GF, Primary product color: black, Mating tab width: 1 mm, Mating alignment type: polarized, Centerline (pitch): 2.54 mm, Product height: 13.35 mm, Operating temperature (max): 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, Operating temperature range: -40-100 °C, Circuit application: signal, UL flammability rating: UL 94HB, Packaging method: bag, Serviceable: yes, Connector position assurance capable: yes
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | straight | |
| Colour | black | |
| Type of locking | Yes | |
| Pin number | 6 pole | |
| Additional parts | unequipped | |
| Connection | crimp connection | |
| Rated voltage | 14 V | |
| Contact type | socket | |
| Grid | 2.54 mm | |
| Number of rows | 1 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TW |
| Customs tariff number | 85472000 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
