1456985-2 | TE Connectivity
Socket, unequipped, 6 pole, straight, 1 row, black, 1456985-2
Order No.: 35P9472
EAN: 4099889889871
MPN:
1456985-2
Unit Price (€ / pc.)
4.4625 € *
Available in 5 Days: 675 pcs. - if ordered today
Total Price:
4.46 € *
Price list
Quantity
Price per unit*
1 pcs.
4.4625 €
10 pcs.
4.1055 €
50 pcs.
3.7009 €
100 pcs.
3.3201 €
*incl. VAT plus shipping costs
Subject to prior sale

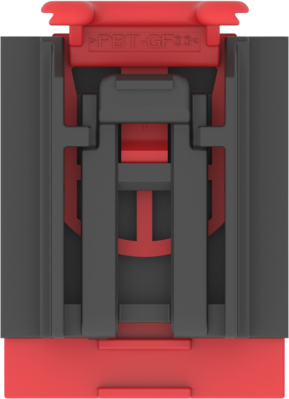

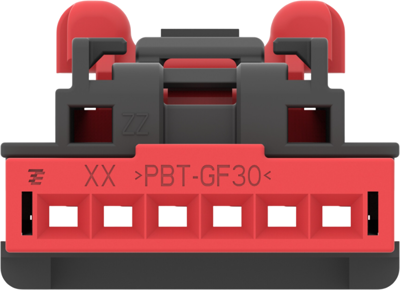

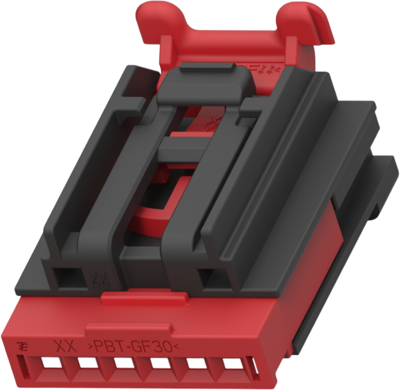

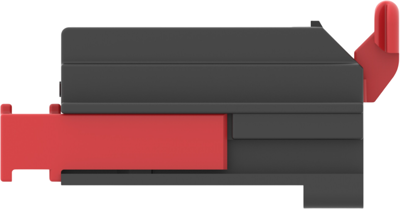

Socket housing, 1456985-2, TE Connectivity
Connector & housing type: housing for female terminals, Connector system: wire-to-board, wire-to-device, Sealable: no, Hybrid connector: no, Primary locking feature: integrated in housing, Number of positions: 6, Number of rows: 1, Body material: PA GF, Primary product color: black, Mating tab width: 1 mm, Mating alignment type: polarized, Centerline (pitch): 2.54 mm, Product height: 13.35 mm, Operating temperature (max): 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, Operating temperature range: -40-100 °C, Circuit application: signal, UL flammability rating: UL 94HB, Packaging method: bulk, Serviceable: yes, Connector position assurance capable: yes
Technical specifications
| Version | straight | |
| Colour | black | |
| Type of locking | Yes | |
| Rated voltage | 14 V | |
| Pin number | 6 pole | |
| Grid | 2.54 mm | |
| Number of rows | 1 | |
| Contact type | socket | |
| Additional parts | unequipped |
Download
Logistics
| Customs tariff number | 85389091 |
| Country of origin | TW |
Compliance
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
