1456471-1 | TE Connectivity

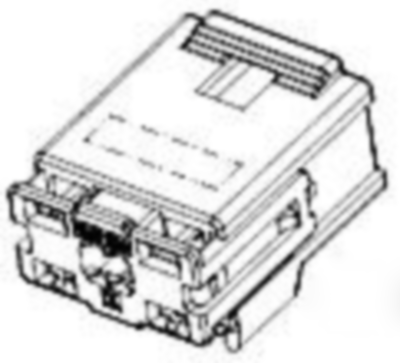

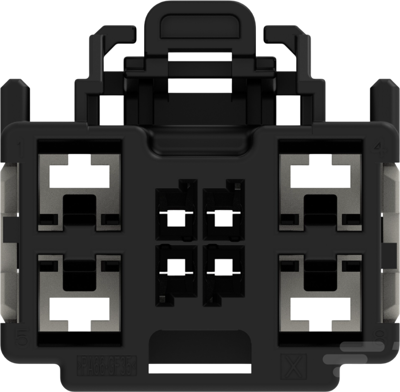

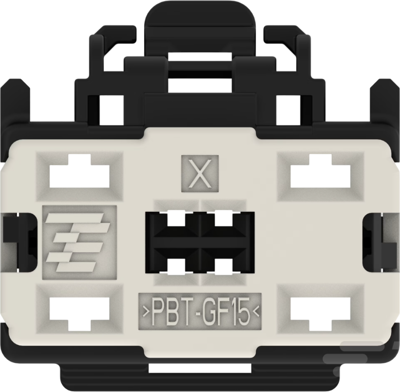

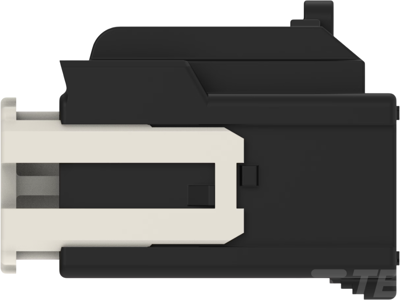

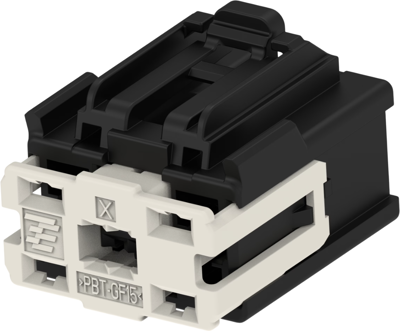

Socket, unequipped, 8 pole, straight, 2 rows, black, 1456471-1
Order No.: 35P9392
EAN: 4099889889482
MPN:
1456471-1
Unit Price (€ / pc.)
2.6537 € *
Standard delivery time from the manufacturer is: 14 Weeks
Socket housing, 1456471-1, TE Connectivity
Connector & housing type: housing for female terminals, Connector system: wire-to-board, wire-to-device, Sealable: no, Hybrid connector: yes, Primary locking feature: integrated in housing, Number of positions: 8, Number of rows: 2, Body material: PA GF, Primary product color: black, Mating tab width: 0.64 mm, 2.8 mm, Mating alignment type: polarized, Centerline (pitch): 2.54 mm, 13.92 mm, Row-to-row spacing: 4.5 mm, Operating temperature (max): 70 °C, 75 °C, 80 °C, 85 °C, Operating temperature range: -40-85 °C, Circuit application: signal, Packaging method: package, Serviceable: yes, Connector position assurance capable: yes
Technical specifications
| Version | straight | |
| Colour | black | |
| Type of locking | Yes | |
| Rated voltage | 24 V | |
| Pin number | 8 pole | |
| Connection | crimp connection | |
| Grid | 2.54 mm | |
| Number of rows | 2 | |
| Contact type | socket | |
| Additional parts | unequipped |
Download
Logistics
| Customs tariff number | 85389091 |
| Country of origin | TW |
Compliance
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
