144172-4 | TE Connectivity

Socket, unequipped, 8 pole, straight, 2 rows, natural, 144172-4

Order No.: 36P3153

EAN: 4099889901375

MPN:

144172-4

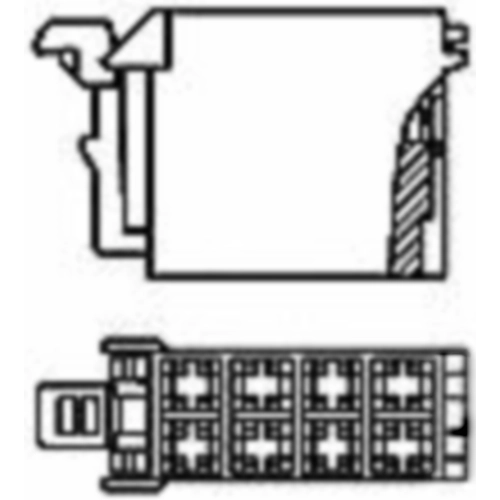

Image may differ

Key Specification:

Contact type socket

Pin number 8 pole

Version straight

Grid 6 mm

Connection crimp connection

Ordering Information:

not to be sold to private customers

Download Datasheet Technical specifications

As a private customer, you can buy this item as soon as we have it back in stock.

Description

Socket housing, 144172-4, TE Connectivity

Connector & housing type: housing for female terminals, Connector system: wire-to-wire, Sealable: no, Hybrid connector: no, Primary locking feature: on the terminal, Number of positions: 8, Number of rows: 2, Body material: PA GF, Primary product color: natural, Mating tab width: 2.8 mm, Mating alignment type: polarized, Centerline (pitch): 6 mm, Row-to-row spacing: 4.6 mm, Operating temperature (max): 70 °C, 75 °C, 80 °C, 85 °C, Operating temperature range: -40-85 °C, Circuit application: signal, UL flammability rating: UL 94V-2, Packaging method: box, Serviceable: yes, Connector position assurance capable: no

Technical specifications

Filter	Property	Value
	Contact type	socket
	Pin number	8 pole
	Version	straight
	Grid	6 mm
	Connection	crimp connection
	Number of rows	2
	Type of locking	Yes
	Rated voltage	12 V
	Rated current	6 A
	Additional parts	unequipped
	Colour	natural
