144172-1 | TE Connectivity
Socket, unequipped, 8 pole, straight, 2 rows, black, 144172-1
Order No.: 36P3151
EAN: 4099889901351
MPN:
144172-1
Unit Price (€ / pc.)
0.6307 € *
Available in 5 Days: 658 pcs. - if ordered today

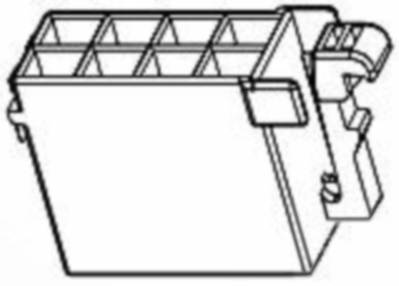

Socket housing, 144172-1, TE Connectivity
Row-to-row spacing: 4.6 mm, Connector & housing type: housing for female terminals, Connector system: wire-to-wire, Sealable: no, Hybrid connector: no, Number of positions: 8, Number of rows: 2, Cable exit angle: 180°, Body material: PA GF, Primary product color: black, Mating tab width: 2.8 mm, Mounting feature: without, Polarized, Centerline (pitch): 6 mm, Height: 24 mm, Length: 36.1 mm, Width: 11 mm, Operating temperature (max): 70 °C, 75 °C, 80 °C, 85 °C, Operating temperature range: -40-85 °C, -40-85 °C, Circuit application: signal, UL flammability rating: UL 94V-2, Packaging method: box, Packaging quantity: 100, Serviceable: yes, Connector position assurance capable: no
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 6 mm | |
| Contact type | socket | |
| Additional parts | unequipped | |
| Colour | black | |
| Rated current | 6 A | |
| Number of rows | 2 | |
| Connection | crimp connection | |
| Pin number | 8 pole | |
| Version | straight | |
| Type of locking | Yes |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85389091 |
| Country of origin | TW |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
