1438759-1 | TE Connectivity

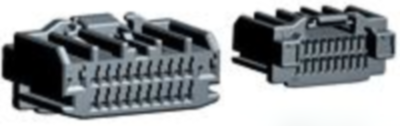

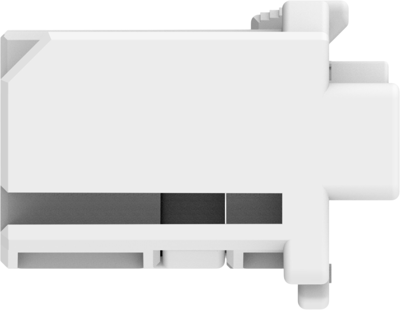

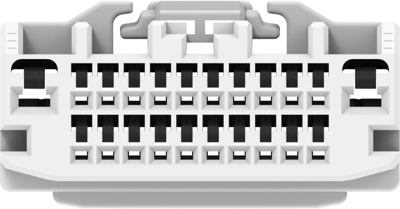

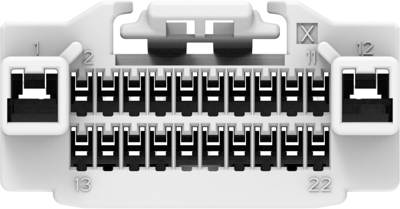

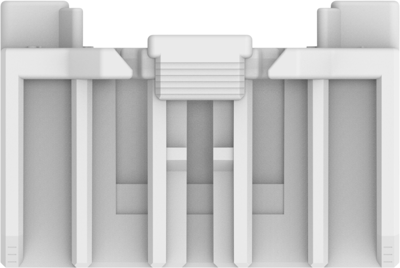

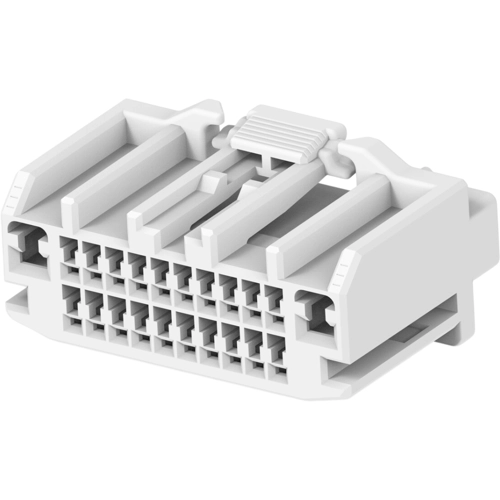

Socket, unequipped, 22 pole, straight, 2 rows, white, 1438759-1
Unit Price (€ / pc.)
1.2852 € *
Standard delivery time from the manufacturer is: 29 Weeks
Socket housing, 1438759-1, TE Connectivity
Connector system: wire-to-wire, Sealable: no, Hybrid connector: yes, Number of positions: 22, Number of rows: 2, Body material: PBT, Primary product color: white, Mating tab width: 1 mm, Strain relief: no, Centerline (pitch): 2.5 mm, Product height: 25.55 mm, Operating temperature (max): 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, Operating temperature range: -30-105 °C, Circuit application: signal, Packaging method: package, Connector position assurance capable: no
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 2.5 mm | |
| Contact type | socket | |
| Connection | crimp connection | |
| Rated voltage | 18 V | |
| Number of rows | 2 | |
| Type of locking | No | |
| Pin number | 22 pole | |
| Additional parts | unequipped | |
| Colour | white | |
| Version | straight |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TW |
| Customs tariff number | 85472000 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
