1379913-1 | TE Connectivity
Plug, unequipped, 20 pole, straight, 2 rows, yellow, 1379913-1
Order No.: 36P1146
EAN: 4099889893564
MPN:
1379913-1
Unit Price (€ / pc.)
2.0944 € *
Standard delivery time from the manufacturer is: 11 Weeks
Total Price:
10.47 € *
Price list
Quantity
Price per unit*
5 pcs.
2.0944 €
10 pcs.
1.9397 €
25 pcs.
1.8088 €
50 pcs.
1.6422 €
*incl. VAT plus shipping costs
Subject to prior sale

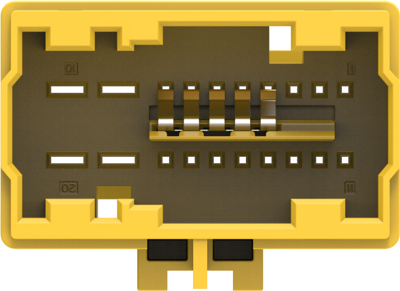

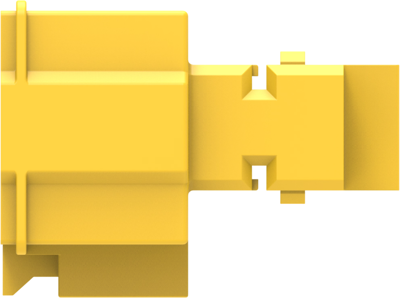

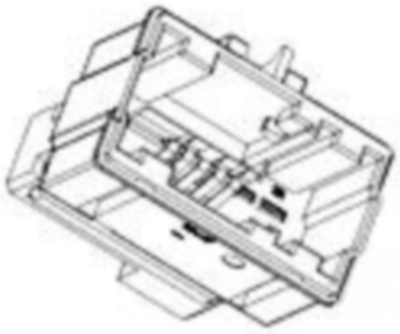

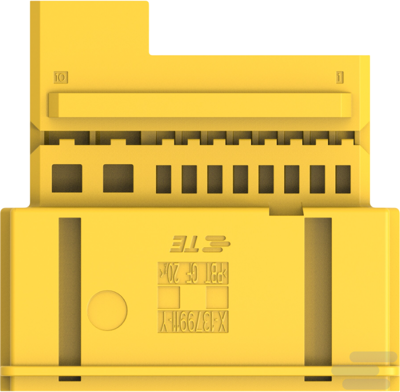

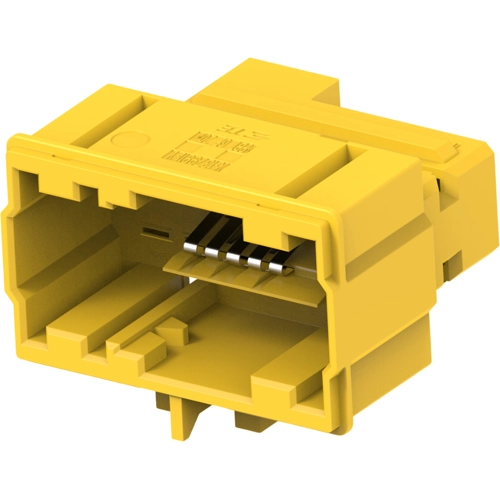

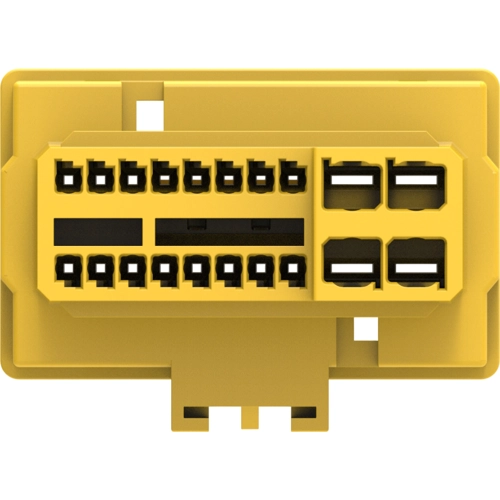

Plug housing, 1379913-1, TE Connectivity
Connector & housing type: housing for male terminals, Connector system: wire-to-wire, Sealable: no, Hybrid connector: no, Primary locking feature: on the terminal, Number of positions: 20, Number of rows: 2, Operating voltage: 30 VDC, Nominal voltage architecture: 12 V, 24 V, Body material: PBT GF, Primary product color: yellow, Mating tab width: 0.63 mm, Strain relief: add by accessory, Centerline (pitch): 2.54 mm, Row-to-row spacing: 4-5.5 mm, Operating temperature (max): 70 °C, 75 °C, 80 °C, 85 °C, Operating temperature range: -40-85 °C, Circuit application: signal, UL flammability rating: UL 94HB, Packaging method: box, Serviceable: no, Connector position assurance capable: no
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 2.54 mm | |
| Contact type | plug | |
| Version | straight | |
| Rated voltage | 30 V | |
| Type of locking | Yes | |
| Additional parts | unequipped | |
| Number of rows | 2 | |
| Colour | yellow | |
| Pin number | 20 pole | |
| Connection | crimp connection |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | IN |
| Customs tariff number | 85389091 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
