1379816-1 | TE Connectivity

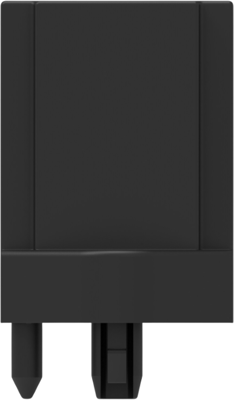

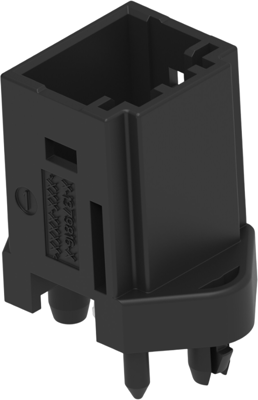

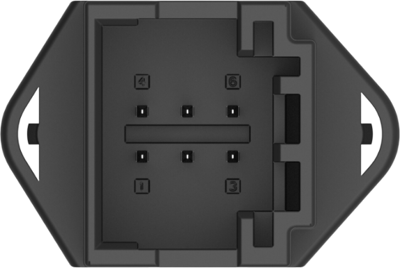

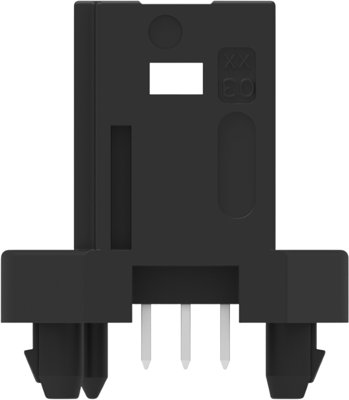

Plug, 6 pole, straight, 2 rows, black, 1379816-1
Order No.: 36P1205
EAN: 4099889894028
MPN:
1379816-1
Unit Price (€ / pc.)
1.0591 € *
Standard delivery time from the manufacturer is: 10 Weeks
PCB mount header, 1379816-1, TE Connectivity
Hybrid header: no, Sealable: no, Connector & contact terminates to: printed circuit board, Number of signal positions: 6, Number of positions: 6, PCB mount orientation: vertical, Number of rows: 2, Operating voltage: 12 VDC, Primary product color: black, Mating tab width: 0.63 mm, Mating tab thickness: 0.63 mm, Contact mating area plating material: tin (Sn), Termination method to printed circuit board: through hole-solder, PCB mount retention type: boardlock, Centerline (pitch): 2.54 mm, Product length: 22.4 mm, Operating temperature (max): 65 °C, 70 °C, 75 °C, 80 °C, 85 °C, Operating temperature range: -40-85 °C, Shielded: no, Circuit application: signal, UL flammability rating: UL 94HB, Packaging quantity: 936, Interface number: 1379890
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | black | |
| Number of rows | 2 | |
| Connection | solder connection | |
| Rated voltage | 12 V | |
| Type of locking | Yes | |
| contact surface | tin-plated | |
| Version | straight | |
| Pin number | 6 pole | |
| Contact type | plug | |
| Grid | 2.54 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369040 |
| Country of origin | IN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
