1379681-2 | TE Connectivity

Plug, unequipped, 24 pole, straight, 2 rows, gray, 1379681-2

Order No.: 35P8677
EAN: 4099889887228
MPN:
1379681-2

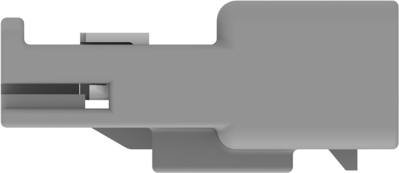

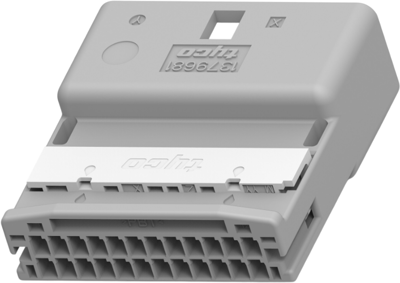

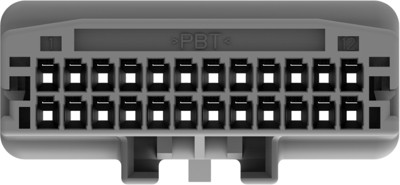

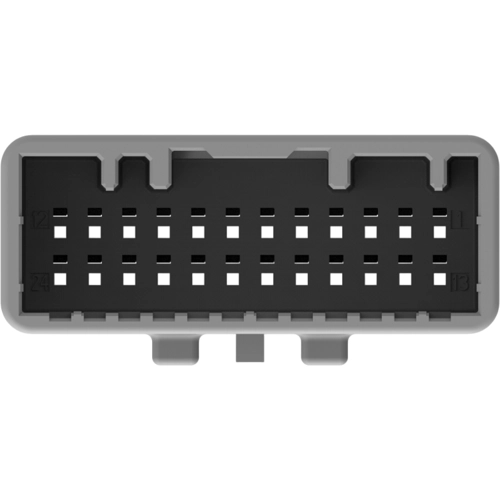

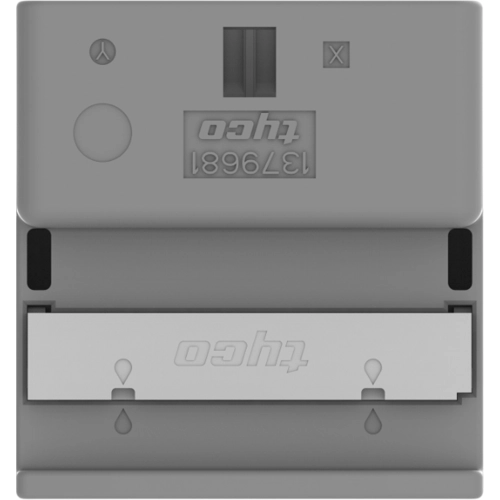

1379681-2 TE Connectivity Automotive Power Connectors Image 1
1379681-2 TE Connectivity Automotive Power Connectors Image 2
1379681-2 TE Connectivity Automotive Power Connectors Image 3
1379681-2 TE Connectivity Automotive Power Connectors Image 4
1379681-2 TE Connectivity Automotive Power Connectors Image 5
Image may differ
Unit Price (€ / pc.)
1.3566 € *
Standard delivery time from the manufacturer is: 11 Weeks
Total Price:
1.36 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
1.3566 €

Plug housing, 1379681-2, TE Connectivity

Row-to-row spacing: 3 mm, Connector & housing type: housing for male terminals, Connector system: wire-to-wire, Sealable: no, Hybrid connector: no, Number of positions: 24, Number of rows: 2, Nominal voltage architecture: 12 V, Operating voltage: 14 VDC, Cable exit angle: 180°, Body material: PBT, Primary product color: gray, Mating tab width: 0.64 mm, Mounting feature: without, Polarized, Centerline (pitch): 2.2 mm, Height: 14.7 mm, Length: 31.8 mm, Width: 33.9 mm, Operating temperature (max): 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, Operating temperature range: -40-100 °C, Circuit application: signal, UL flammability rating: UL 94-HB, Packaging method: box, Packaging quantity: 300, Serviceable: yes, Connector position assurance capable: no

Technical specifications
Version straight
Colour gray
Type of locking Yes
Rated voltage 14 V
Pin number 24 pole
Grid 2.2 mm
Number of rows 2
Contact type plug
Additional parts unequipped
Logistics
Customs tariff number 85389091
Country of origin IN
Compliance
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
