1379674-1 | TE Connectivity
Plug, unequipped, 4 pole, straight, 1 row, black, 1379674-1
Order No.: 35P8683
EAN: 4099889887280
MPN:
1379674-1
Unit Price (€ / pc.)
0.3094 € *
Available in 5 Days: 2,464 pcs. - if ordered today
Total Price:
1.55 € *
Price list
Quantity
Price per unit*
5 pcs.
0.3094 €
10 pcs.
0.2892 €
25 pcs.
0.2689 €
50 pcs.
0.2440 €
*incl. VAT plus shipping costs
Subject to prior sale

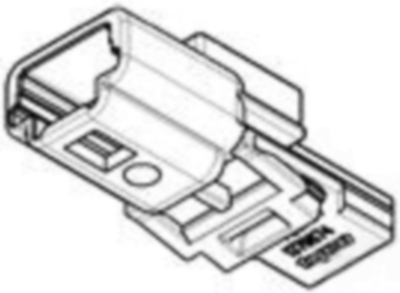

Plug housing, 1379674-1, TE Connectivity
Connector & housing type: housing for male terminals, Connector system: wire-to-wire, Sealable: no, Hybrid connector: no, Primary locking feature: on the terminal, Number of positions: 4, Number of rows: 1, Operating voltage: 14 VDC, Nominal voltage architecture: 12 V, Body material: PBT, Primary product color: black, Mating tab width: 0.64 mm, Mating alignment type: polarized, Centerline (pitch): 2.2 mm, Product height: 11.75 mm, Operating temperature (max): 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, Operating temperature range: -40-100 °C, Circuit application: signal, UL flammability rating: UL 94HB, Packaging method: bag, Serviceable: yes, Connector position assurance capable: no
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 2.2 mm | |
| Contact type | plug | |
| Version | straight | |
| Rated voltage | 14 V | |
| Type of locking | Yes | |
| Additional parts | unequipped | |
| Number of rows | 1 | |
| Colour | black | |
| Pin number | 4 pole | |
| Connection | crimp connection |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | IN |
| Customs tariff number | 85472000 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
