1379662-1 | TE Connectivity

Socket, unequipped, 12 pole, straight, 2 rows, black, 1379662-1

Order No.: 35P8666
EAN: 4099889887112
MPN:
1379662-1

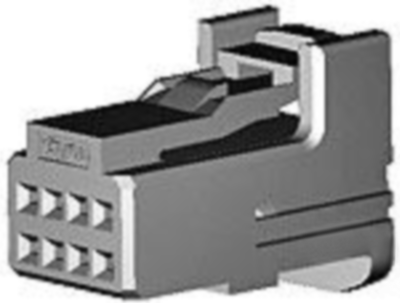

1379662-1 TE Connectivity Automotive Power Connectors Image 1

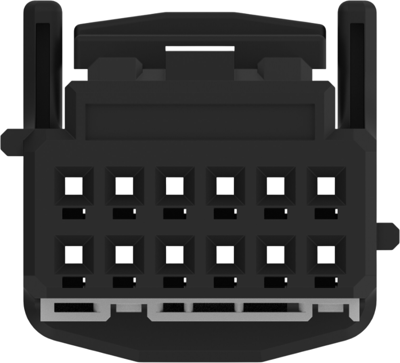

1379662-1 TE Connectivity Automotive Power Connectors Image 2

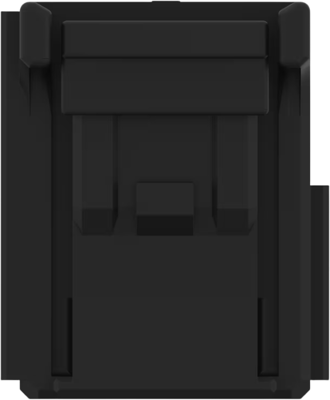

1379662-1 TE Connectivity Automotive Power Connectors Image 3

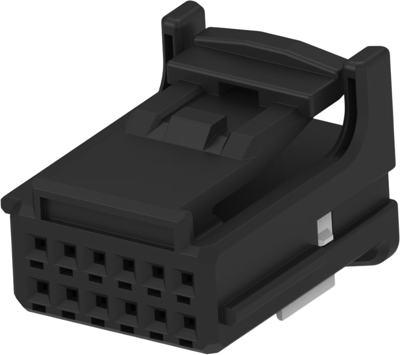

1379662-1 TE Connectivity Automotive Power Connectors Image 4

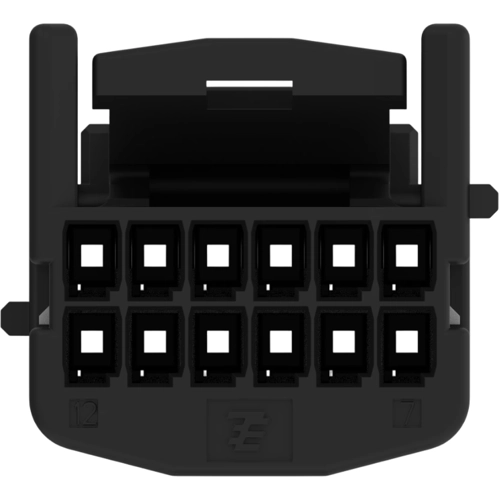

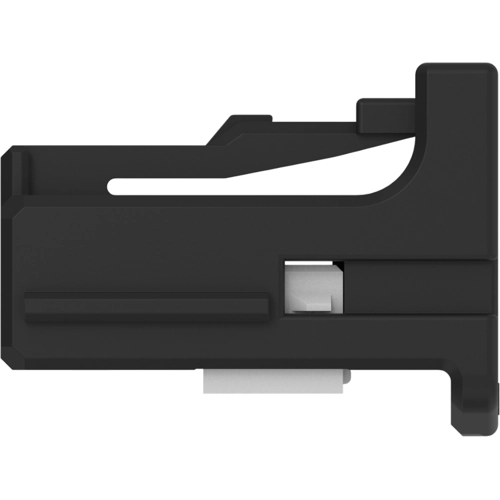

1379662-1 TE Connectivity Automotive Power Connectors Image 5
Image may differ
Unit Price (€ / pc.)
0.4760 € *
Standard delivery time from the manufacturer is: 12 Weeks
Total Price:
0.48 € *
Price list
Quantity
Price per unit*
1 pcs.
0.4760 €
10 pcs.
0.4403 €
50 pcs.
0.4046 €
100 pcs.
0.3451 €
*incl. VAT plus shipping costs
Subject to prior sale

Socket housing, 1379662-1, TE Connectivity

Connector & housing type: housing for female terminals, Connector system: wire-to-wire, Sealable: no, Hybrid connector: no, Primary locking feature: on the terminal, Number of positions: 12, Number of rows: 2, Operating voltage: 14 VDC, Nominal voltage architecture: 12 V, Body material: PBT, Primary product color: black, Mating tab width: 0.64 mm, Mating alignment type: polarized, Centerline (pitch): 2.2 mm, Row-to-row spacing: 3 mm, Operating temperature (max): 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, Operating temperature range: -40-100 °C, Circuit application: signal, UL flammability rating: UL 94HB, Packaging method: box, Serviceable: yes, Connector position assurance capable: no

Technical specifications
Version straight
Colour black
Type of locking Yes
Rated voltage 14 V
Pin number 12 pole
Connection crimp connection
Grid 2.2 mm
Number of rows 2
Contact type socket
Additional parts unequipped
Logistics
Customs tariff number 85389091
Country of origin IN
Compliance
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
