1379165-4 | TE Connectivity

Plug, 4 pole, straight, 1 row, yellow, 1379165-4

Order No.: 36P1199
EAN: 4099889893984
MPN:
1379165-4

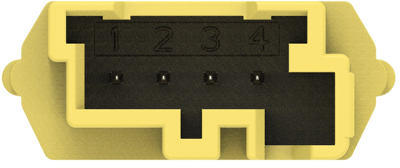

1379165-4 TE Connectivity Automotive Power Connectors Image 1

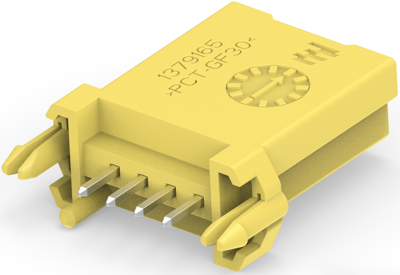

1379165-4 TE Connectivity Automotive Power Connectors Image 2

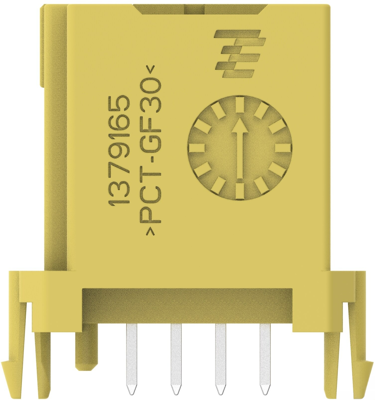

1379165-4 TE Connectivity Automotive Power Connectors Image 3

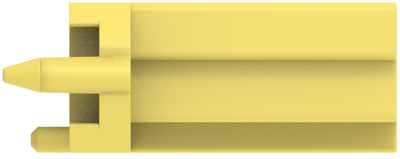

1379165-4 TE Connectivity Automotive Power Connectors Image 4

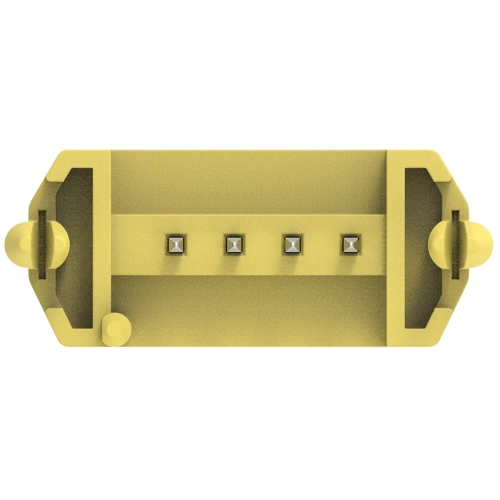

1379165-4 TE Connectivity Automotive Power Connectors Image 5
Image may differ
Unit Price (€ / pc.)
1.2019 € *
Standard delivery time from the manufacturer is: 16 Weeks
Total Price:
1.20 € *
Price list
Quantity
Price per unit*
1 pcs.
1.2019 €
10 pcs.
1.0829 €
50 pcs.
0.9758 €
100 pcs.
0.8925 €
*incl. VAT plus shipping costs
Subject to prior sale

Hybrid header, 1379165-4, TE Connectivity

Hybrid header: no, Sealable: no, Connector & contact terminates to: printed circuit board, Number of signal positions: 4, Number of positions: 4, PCB mount orientation: vertical, Number of rows: 1, Nominal voltage architecture: 12 V, Primary product color: yellow, Mating tab width: 0.63 mm, Mating tab thickness: 0.63 mm, Contact mating area plating material: tin (Sn), Termination method to printed circuit board: through hole-solder, PCB mount retention type: boardlock, Centerline (pitch): 2.54 mm, PCB thickness (recommended): 1.6 mm, Operating temperature (max): 65 °C, 70 °C, 75 °C, 80 °C, 85 °C, Operating temperature range: -40-85 °C, -40-85 °C, Circuit application: signal, UL flammability rating: UL 94-HB, Packaging quantity: 585, Interface number: 208-15592

Technical specifications
Colour yellow
Type of locking Yes
contact surface tin-plated
Grid 2.54 mm
Pin number 4 pole
Version straight
Connection solder connection
Contact type plug
Rated voltage 12 V
Number of rows 1
Logistics
Country of origin IN
Customs tariff number 85366910
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
