1379029-2 | TE Connectivity

Socket, unequipped, 4 pole, straight, 1 row, white, 1379029-2

Order No.: 36P1031
EAN: 4099889892628
MPN:
1379029-2

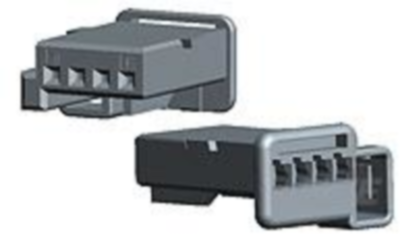

1379029-2 TE Connectivity Automotive Power Connectors Image 1

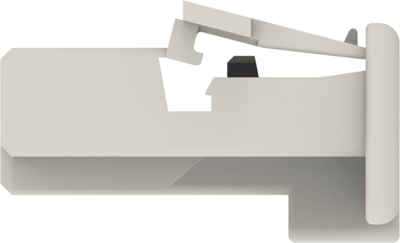

1379029-2 TE Connectivity Automotive Power Connectors Image 2

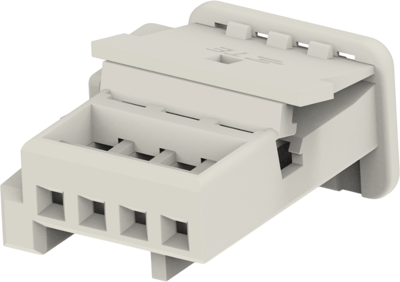

1379029-2 TE Connectivity Automotive Power Connectors Image 3

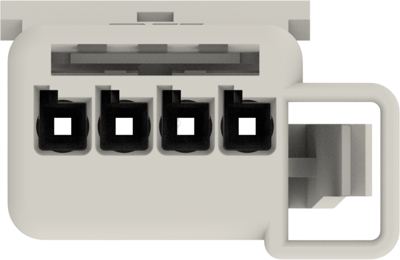

1379029-2 TE Connectivity Automotive Power Connectors Image 4

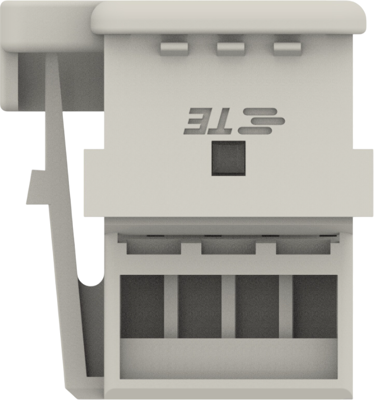

1379029-2 TE Connectivity Automotive Power Connectors Image 5
Image may differ
Unit Price (€ / pc.)
0.3082 € *
Standard delivery time from the manufacturer is: 7 Weeks
Total Price:
924.63 € *
*incl. VAT plus shipping costs
Subject to prior sale
3000 pcs.
0.3082 €

Socket housing, 1379029-2, TE Connectivity

Connector & housing type: housing for female terminals, Connector system: wire-to-wire, Sealable: no, Hybrid connector: no, Primary locking feature: on the terminal, Number of positions: 4, Number of rows: 1, Nominal voltage architecture: 12 V, 24 V, Operating voltage: 24 VDC, Cable exit angle: 180°, Body material: PBT GF, Primary product color: white, Mating tab width: 0.63 mm, Mounting feature: without, Centerline (pitch): 2.54 mm, Height: 10.7 mm, Length: 16.5 mm, Width: 17.6 mm, Operating temperature (max): 70 °C, 75 °C, 80 °C, 85 °C, Operating temperature range: -40-85 °C, -40-85 °C, Circuit application: signal, UL flammability rating: UL 94-HB, Packaging method: box, Serviceable: no, Connector position assurance capable: no

Technical specifications
Version straight
Colour white
Type of locking No
Rated voltage 24 V
Pin number 4 pole
Connection crimp connection
Grid 2.54 mm
Number of rows 1
Rated current 7.5 A
Contact type socket
Additional parts unequipped
Logistics
Customs tariff number 85389091
Country of origin IN
Compliance
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
