1326490-3 | TE Connectivity

Socket, unequipped, 4 pole, straight, 1 row, gray, 1326490-3

Order No.: 36P2761
EAN: 4099889898231
MPN:
1326490-3

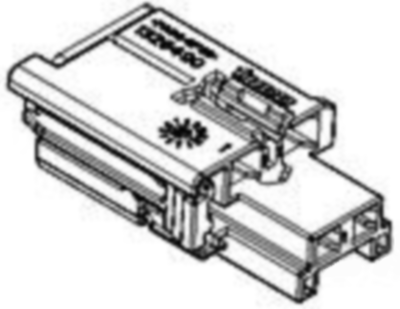

1326490-3 TE Connectivity Automotive Power Connectors Image 1

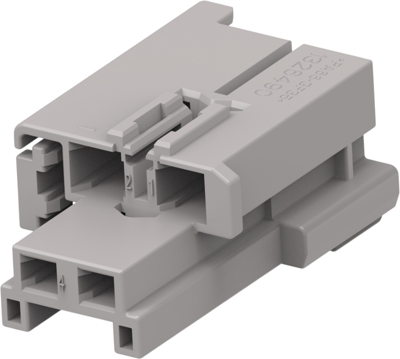

1326490-3 TE Connectivity Automotive Power Connectors Image 2

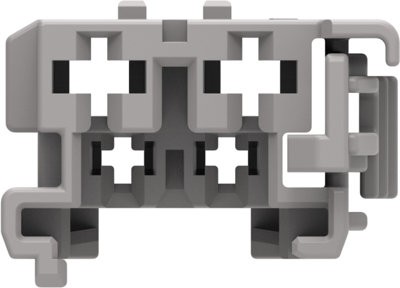

1326490-3 TE Connectivity Automotive Power Connectors Image 3

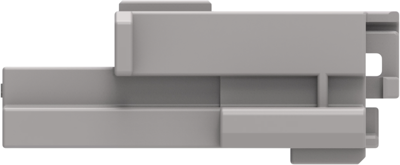

1326490-3 TE Connectivity Automotive Power Connectors Image 4
Image may differ
Unit Price (€ / pc.)
1.3447 € *
Available in 5 Days: 528 pcs. - if ordered today
Total Price:
1.34 € *
Price list
Quantity
Price per unit*
1 pcs.
1.3447 €
10 pcs.
1.2257 €
50 pcs.
1.1067 €
100 pcs.
0.9877 €
*incl. VAT plus shipping costs
Subject to prior sale

Socket housing, 1326490-3, TE Connectivity

Connector & housing type: housing for female terminals, Connector system: wire-to-board, wire-to-device, Sealable: no, Hybrid connector: yes, Primary locking feature: on the terminal, Number of positions: 4, Number of rows: 1, Body material: PA GF, Primary product color: gray, Mating tab width: 1.5-2.8 mm, Strain relief: no, Centerline (pitch): 2.75 mm, 4 mm, Row-to-row spacing: 5.75 mm, Operating temperature (max): 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, 110 °C, 120 °C, 125 °C, Operating temperature range: -40-125 °C, -40-125 °C, Circuit application: signal, UL flammability rating: UL 94HB, Packaging method: package, Serviceable: yes, Connector position assurance capable: no

Technical specifications
Version straight
Colour gray
Type of locking Yes
Pin number 4 pole
Connection crimp connection
Grid 2.75 mm
Number of rows 1
Contact type socket
Additional parts unequipped
Logistics
Customs tariff number 85472000
Country of origin TW
Compliance
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
