1326133-1 | TE Connectivity
Socket, unequipped, 18 pole, straight, 2 rows, black, 1326133-1
Order No.: 35P8803
EAN: 4099889887877
MPN:
1326133-1
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
1.1424 € *
Standard delivery time from the manufacturer is: 13 Weeks

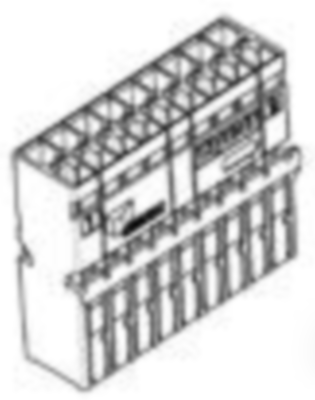

Socket housing, 1326133-1, TE Connectivity
Row-to-row spacing: 5.9 mm, Connector & housing type: housing for female terminals, Connector system: wire-to-wire, Sealable: no, Hybrid connector: no, Number of positions: 18, Number of rows: 2, Body material: other, Primary product color: black, Mounting feature: without, Polarized, Centerline (pitch): 2.54 mm, Height: 20.4 mm, Length: 23.7 mm, Width: 7.9 mm, UL flammability rating: UL 94-HB, Packaging method: package, Packaging quantity: 50, Serviceable: no, Connector position assurance capable: no
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact type | socket | |
| Pin number | 18 pole | |
| Version | straight | |
| Grid | 2.54 mm | |
| Connection | crimp connection | |
| Number of rows | 2 | |
| Type of locking | No | |
| Additional parts | unequipped | |
| Colour | black |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TW |
| Customs tariff number | 85472000 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
