1326018-2 | TE Connectivity
Socket, unequipped, 32 pole, straight, 4 rows, yellow, 1326018-2
Order No.: 35P8812
EAN: 4099889887921
MPN:
1326018-2
Unit Price (€ / pc.)
5.7358 € *
Available in 5 Days: 63 pcs. - if ordered today

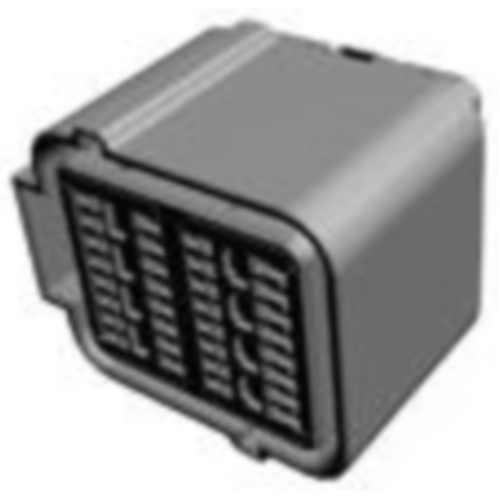

Socket housing, 1326018-2, TE Connectivity
Connector & housing type: housing for female terminals, Connector system: wire-to-wire, Sealable: no, Hybrid connector: no, Primary locking feature: integrated in housing, Number of positions: 32, Number of rows: 4, Body material: PA GF, Primary product color: yellow, Mating tab width: 0.64 mm, Strain relief: no, Centerline (pitch): 2.54 mm, Row-to-row spacing: 5.9 mm, Operating temperature (max): 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, Operating temperature range: -40-105 °C, Circuit application: signal, UL flammability rating: UL 94HB, Packaging method: package, Serviceable: no, Connector position assurance capable: yes
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 2.54 mm | |
| Contact type | socket | |
| Connection | crimp connection | |
| Number of rows | 4 | |
| Type of locking | Yes | |
| Pin number | 32 pole | |
| Additional parts | unequipped | |
| Colour | yellow | |
| Version | straight |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TW |
| Customs tariff number | 85472000 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
