1326018-1 | TE Connectivity

Socket, unequipped, 32 pole, straight, 4 rows, yellow, 1326018-1

Order No.: 35P8811

EAN: 4099889887914

MPN:

1326018-1

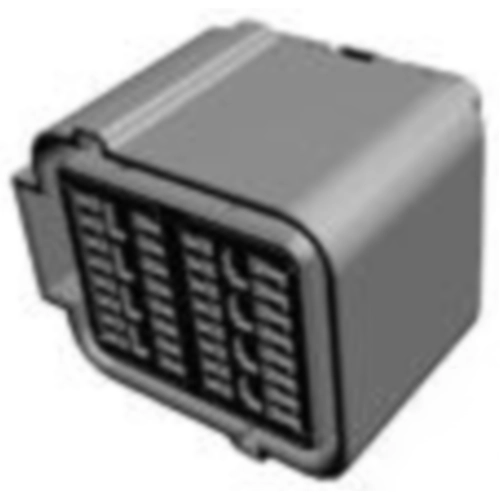

Image may differ

Key Specification:

Contact type socket

Pin number 32 pole

Version straight

Grid 2.54 mm

Connection crimp connection

Ordering Information:

not to be sold to private customers

Download Datasheet Technical specifications

As a private customer, you can buy this item as soon as we have it back in stock.

Description

Socket housing, 1326018-1, TE Connectivity

Connector & housing type: housing for female terminals, Connector system: wire-to-wire, Sealable: no, Hybrid connector: no, Primary locking feature: integrated in housing, Number of positions: 32, Number of rows: 4, Body material: PA GF, Primary product color: yellow, Mating tab width: 0.64 mm, Strain relief: no, Centerline (pitch): 2.54 mm, Row-to-row spacing: 5.9 mm, Operating temperature (max): 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, Operating temperature range: -40-105 °C, Circuit application: signal, UL flammability rating: UL 94HB, Packaging method: package, Serviceable: no, Connector position assurance capable: yes

Technical specifications

Filter	Property	Value
	Contact type	socket
	Pin number	32 pole
	Version	straight
	Grid	2.54 mm
	Connection	crimp connection
	Number of rows	4
	contact surface	gold-plated
	Type of locking	Yes
	Additional parts	unequipped
	Colour	yellow
