1318758-1 | TE Connectivity

Socket, unequipped, 30 pole, straight, 3 rows, natural, 1318758-1

Order No.: 35P8663
EAN: 4099889887082
MPN:
1318758-1
1318758-1 TE Connectivity Automotive Power Connectors

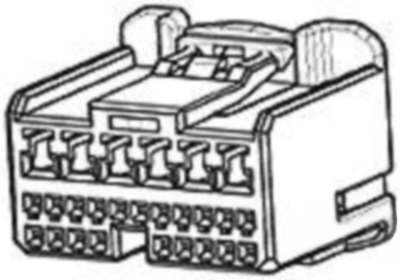

Image may differ
Unit Price (€ / pc.)
0.8449 € *
Standard delivery time from the manufacturer is: 19 Weeks
Total Price:
1,351.84 € *
*incl. VAT plus shipping costs
Subject to prior sale
1600 pcs.
0.8449 €

Socket housing, 1318758-1, TE Connectivity

Connector & housing type: housing for female terminals, Connector system: wire-to-board, wire-to-device, Sealable: no, Hybrid connector: yes, Number of positions: 30, Number of rows: 1, 3, Operating voltage: 12 VDC, Nominal voltage architecture: 12 V, Body material: PBT, Primary product color: natural, Mating tab width: 0.64 mm, 2.3 mm, Mating alignment type: polarized, Centerline (pitch): 2.2 mm, Row-to-row spacing: 5.9 mm, Operating temperature (max): 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, Operating temperature range: -30-105 °C, Circuit application: signal, UL flammability rating: UL 94HB, Packaging method: bag, Serviceable: yes, Connector position assurance capable: no

Technical specifications
Filter Property Value
Colour natural
Type of locking Yes
Grid 2.2 mm
Pin number 30 pole
Version straight
Additional parts unequipped
Connection crimp connection
Contact type socket
Rated voltage 12 V
Number of rows 3
Logistics
Property Value
Country of origin TW
Customs tariff number 85472000
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
