1-967570-1 | TE Connectivity

Plug, unequipped, 2 pole, straight, 1 row, black, 1-967570-1

Order No.: 35P9976
EAN: 4099889891522
MPN:
1-967570-1
Series: MQS
1-967570-1 TE Connectivity Automotive Power Connectors Image 1

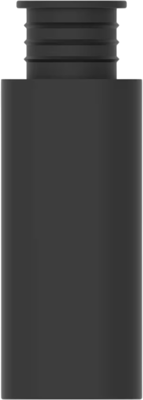

1-967570-1 TE Connectivity Automotive Power Connectors Image 2

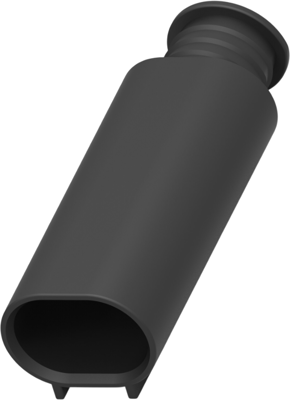

1-967570-1 TE Connectivity Automotive Power Connectors Image 3

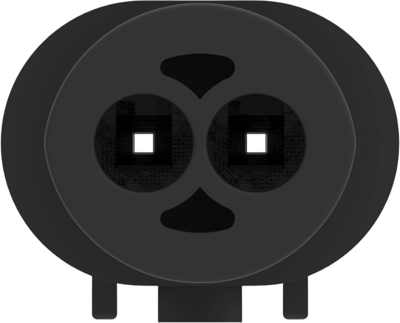

1-967570-1 TE Connectivity Automotive Power Connectors Image 4

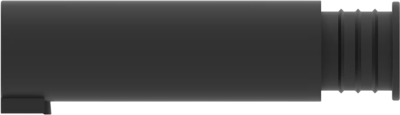

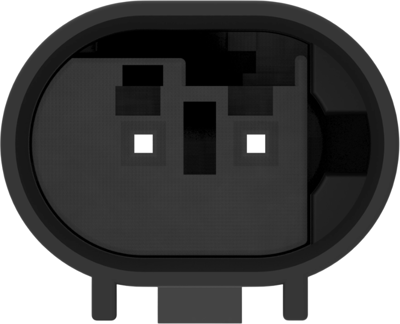

1-967570-1 TE Connectivity Automotive Power Connectors Image 5
Image may differ
Unit Price (€ / pc.)
1.5470 € *
Available: 166 pcs.
Available in 5 Days: 1,207 pcs. - if ordered today
Total Price:
1.55 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
1.5470 €

Plug housing, 1-967570-1, TE Connectivity

Connector & housing type: housing for male terminals, Connector system: wire-to-wire, Sealable: yes, Hybrid connector: no, Primary locking feature: on the terminal, Number of positions: 2, Number of rows: 1, Body material: PBT GF, Primary product color: black, Connector code: A, Mating tab width: 0.63 mm, Mating alignment type: polarized, Centerline (pitch): 2.54 mm, Product height: 14.2 mm, Operating temperature (max): 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, 110 °C, 120 °C, Operating temperature range: -40-120 °C, Degree of protection: IP6K9K, Serviceable: yes, Connector position assurance capable: no

Technical specifications
Version straight
Colour black
Type of locking Yes
Pin number 2 pole
Connection crimp connection
Grid 4 mm
Number of rows 1
Rated current 7.5 A
Contact type plug
Additional parts unequipped
Logistics
Customs tariff number 85389091
Country of origin US
Compliance
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
