1-929170-4 | TE Connectivity

Socket, unequipped, 4 pole, straight, 1 row, black, 1-929170-4

Order No.: 36P1081
EAN: 4099889893014
MPN:
1-929170-4
Series: MQS

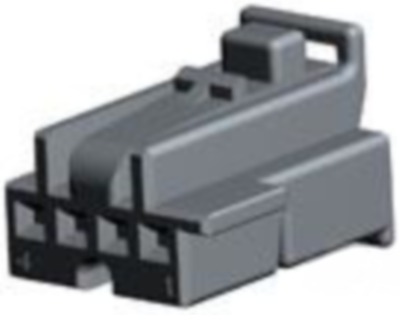

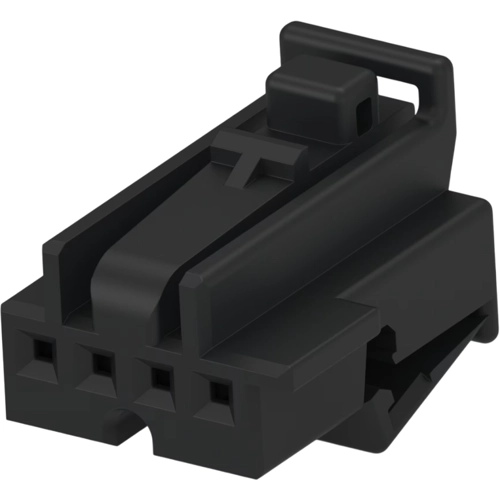

1-929170-4 TE Connectivity Automotive Power Connectors Image 1

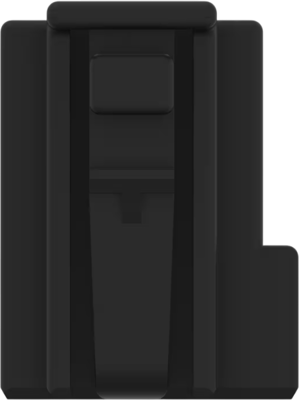

1-929170-4 TE Connectivity Automotive Power Connectors Image 2

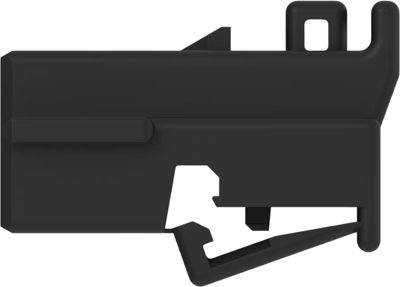

1-929170-4 TE Connectivity Automotive Power Connectors Image 3

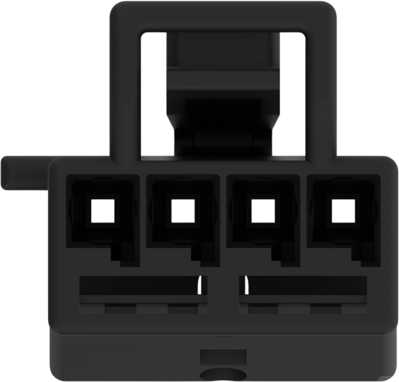

1-929170-4 TE Connectivity Automotive Power Connectors Image 4
Image may differ
Unit Price (€ / pc.)
0.5236 € *
Available: 495 pcs.
Available in 5 Days: 795 pcs. - if ordered today
Total Price:
2.62 € *
Price list
Quantity
Price per unit*
5 pcs.
0.5236 €
10 pcs.
0.4879 €
25 pcs.
0.4522 €
50 pcs.
0.4046 €
*incl. VAT plus shipping costs
Subject to prior sale

Socket housing, 1-929170-4, TE Connectivity

Connector & housing type: housing for female terminals, Connector system: wire-to-board, wire-to-device, wire-to-wire, Sealable: no, Hybrid connector: no, Primary locking feature: on the terminal, Number of positions: 4, Body material: PBT GF, Primary product color: black, Connector code: A, Mating tab width: 0.63 mm, Mating alignment type: polarized, Centerline (pitch): 2.54 mm, Circuit application: signal, Packaging method: package, Serviceable: yes, Connector position assurance capable: no

Technical specifications
Filter Property Value
Grid 2.54 mm
Contact type socket
Version straight
Rated current 7.5 A
Type of locking Yes
Additional parts unequipped
Number of rows 1
Colour black
Pin number 4 pole
Connection crimp connection
Logistics
Property Value
Country of origin CN
Customs tariff number 85389011
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
