1-85112-2 | TE Connectivity

Plug, 13 pole, straight, 3 rows, black, 1-85112-2

Order No.: 71P3697
EAN: 4099889449396
MPN:
1-85112-2
Series: Multilock

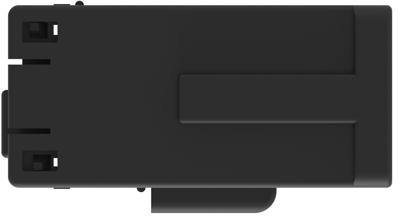

1-85112-2 TE Connectivity Automotive Power Connectors Image 1

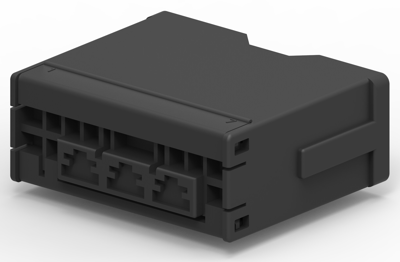

1-85112-2 TE Connectivity Automotive Power Connectors Image 2

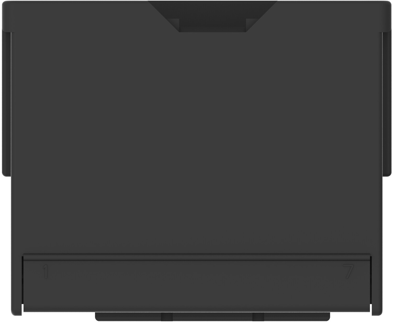

1-85112-2 TE Connectivity Automotive Power Connectors Image 3

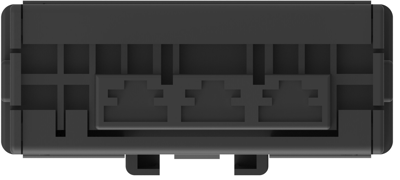

1-85112-2 TE Connectivity Automotive Power Connectors Image 4

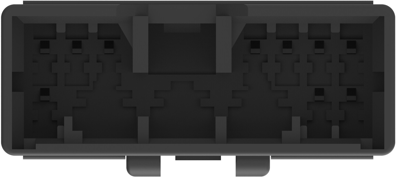

1-85112-2 TE Connectivity Automotive Power Connectors Image 5
Image may differ
Unit Price (€ / pc.)
1.8207 € *
Available in 5 Days: 210 pcs. - if ordered today
Total Price:
163.86 € *
*incl. VAT plus shipping costs
Subject to prior sale
90 pcs.
1.8207 €

Housing for male terminals, 1-85112-2, TE Connectivity

Housing for male terminals, Wire-to-Wire, 13 Position, 3.5 mm Centerline, Black, Power & Signal.

Technical specifications
Filter Property Value
Connection crimp connection
Colour black
Pin number 13 pole
Contact type tab
Type of locking Yes
Version straight
Number of rows 3
Grid 3.5 mm
Logistics
Property Value
Country of origin KR
Customs tariff number 85389099
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
