1-368376-1 | TE Connectivity
Socket, unequipped, 81 pole, straight, 2 rows, black, 1-368376-1
Order No.: 35P9349
EAN: 4099889889406
MPN:
1-368376-1
Unit Price (€ / pc.)
11.8524 € *
Available: 10 pcs.
Available in 5 Days: 75 pcs. - if ordered today
Total Price:
11.85 € *
Price list
Quantity
Price per unit*
1 pcs.
11.8524 €
5 pcs.
11.2455 €
10 pcs.
10.5196 €
25 pcs.
9.5914 €
*incl. VAT plus shipping costs
Subject to prior sale

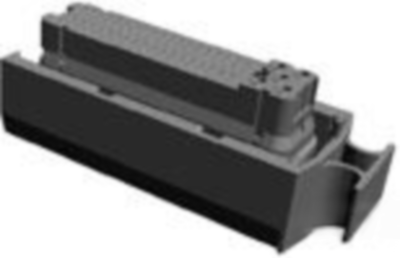

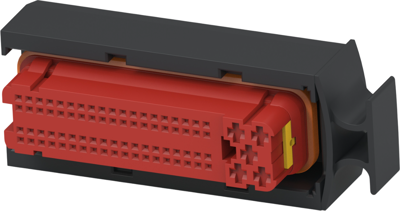

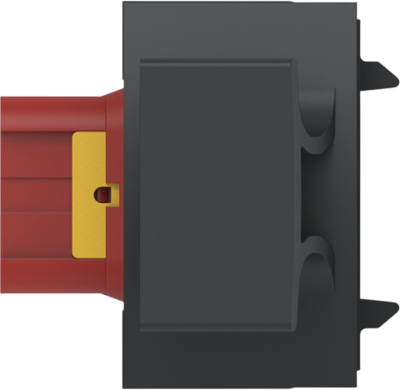

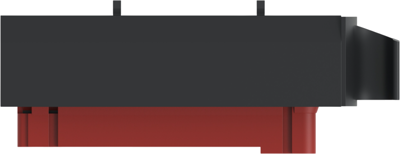

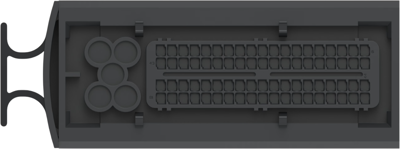

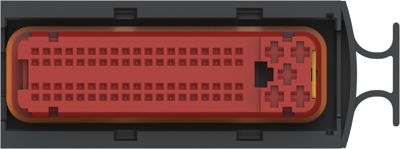

Socket housing, 1-368376-1, TE Connectivity
Connector & housing type: housing for female terminals, Connector system: wire-to-board, Sealable: yes, Hybrid connector: yes, Primary locking feature: integrated in housing, Number of positions: 81, Operating voltage: 6 VDC, Nominal voltage architecture: 6 V, 18 V, Body material: PA GF, Primary product color: black, Connector code: B, Mating tab width: 0.63 mm, 2.8 mm, Mating alignment type: polarized, Centerline (pitch): 2.54 mm, 5.8 mm, Row-to-row spacing: 2.54 mm, Operating temperature (max): 125 °C, Operating temperature range: -40-125 °C, -40-125 °C, Circuit application: signal, Packaging method: tray, Serviceable: no, Connector position assurance capable: no
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | black | |
| Additional parts | unequipped | |
| Number of rows | 2 | |
| Rated voltage | 18 V | |
| Type of locking | Yes | |
| Version | straight | |
| Pin number | 81 pole | |
| Contact type | socket | |
| Grid | 2.54 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85472000 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
