1-2303815-2 | TE Connectivity
Socket, 2 pole, straight, 1 row, gray, 1-2303815-2
Unit Price (€ / pc.)
2.3086 € *
Available in 5 Days: 584 pcs. - if ordered today
Total Price:
11.54 € *
Price list
Quantity
Price per unit*
5 pcs.
2.3086 €
10 pcs.
2.1420 €
25 pcs.
1.9873 €
50 pcs.
1.8088 €
*incl. VAT plus shipping costs
Subject to prior sale

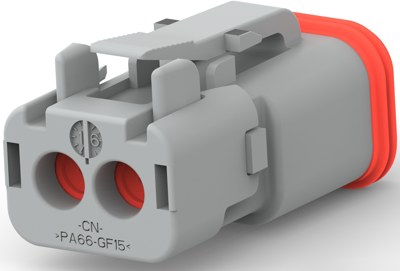

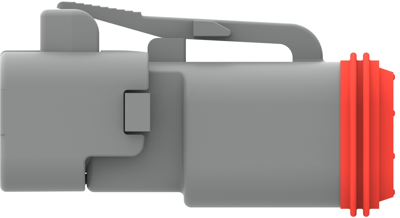

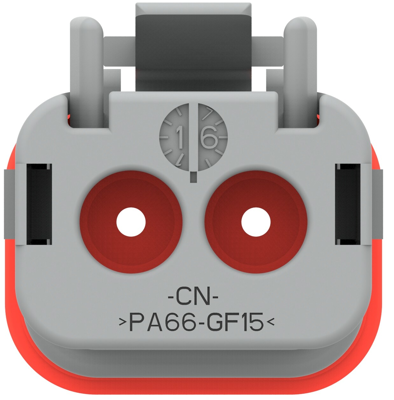

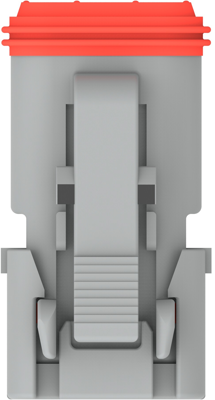

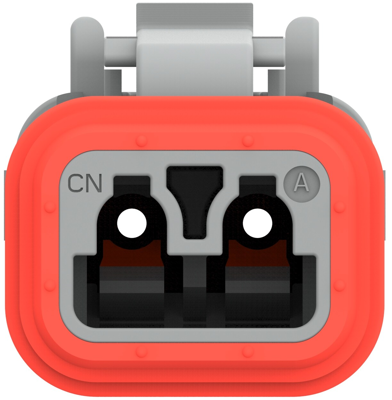

Sealed connector, 1-2303815-2, TE Connectivity
The 1-2303815-2 is a sealed connector for cable to cable and cable to board applications. This product is used in harsh environment applications where even a small degradation in connection may be critical. Thermoplastic housing offers a wide operating temperature range and silicone rear wire and interface seal allows the connector to withstand conditions of extreme temperature and moisture. It offers field proven reliability and rugged quality, also includes optional flange mounting, multi-pin arrangements, and design flexibility.
Features
- Rectangular, thermoplastic housing
- Integrated latch for mating
- Wedge locks confirm contact alignment and retention
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 5.46 mm | |
| Contact type | socket | |
| Version | straight | |
| Rated current | 13 A | |
| Rated voltage | 250 V | |
| Type of locking | Yes | |
| Number of rows | 1 | |
| Colour | gray | |
| Pin number | 2 pole | |
| Connection | crimp connection |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | MX |
| Customs tariff number | 85389099 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
