1-2141847-2 | TE Connectivity

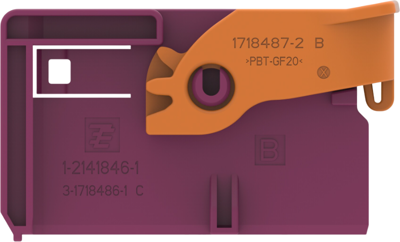

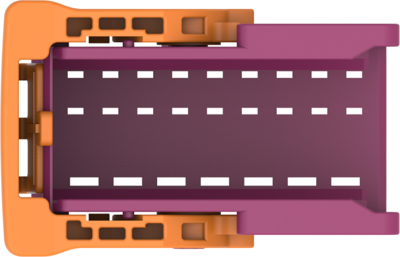

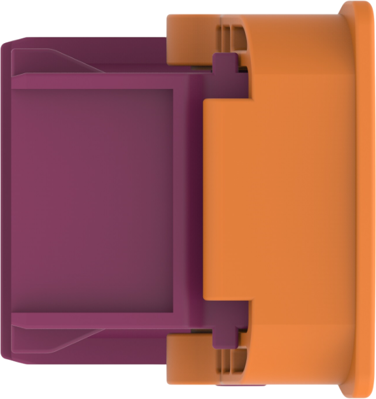

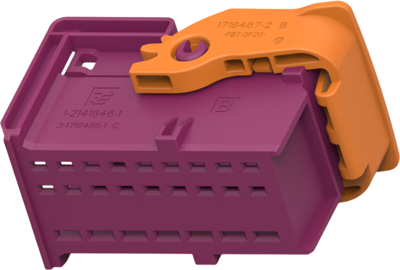

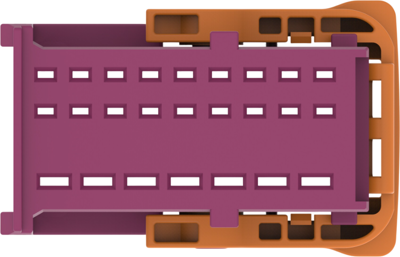

Socket, unequipped, 36 pole, straight, 4 rows, orange, 1-2141847-2
Order No.: 36P4282
EAN: 4099889906127
MPN:
1-2141847-2
Unit Price (€ / pc.)
2.2015 € *
Standard delivery time from the manufacturer is: 33 Weeks
Socket housing, 1-2141847-2, TE Connectivity
Connector & housing type: housing for female terminals, Connector system: wire-to-board, wire-to-device, Sealable: no, Hybrid connector: no, Primary locking feature: integrated in housing, Number of positions: 36, Number of rows: 4, Operating voltage: 36 VDC, Nominal voltage architecture: 12 V, 24 V, Body material: PBT GF, Primary product color: orange, Mating tab width: 1.5-Mating alignment type: polarized, Centerline (pitch): 4-Product height: 27 mm, Operating temperature (max): 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, 110 °C, 120 °C, Operating temperature range: -40-120 °C, Circuit application: signal, UL flammability rating: UL 94HB, Packaging method: box, Serviceable: yes, Connector position assurance capable: no
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | straight | |
| Colour | orange | |
| Type of locking | Yes | |
| Rated voltage | 36 V | |
| Pin number | 36 pole | |
| Grid | 4 mm | |
| Number of rows | 4 | |
| Contact type | socket | |
| Additional parts | unequipped |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85472000 |
| Country of origin | IN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
