1-2141324-5 | TE Connectivity

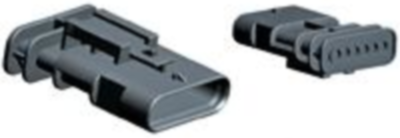

Plug, unequipped, 6 pole, straight, 1 row, yellow, 1-2141324-5
Order No.: 35P9689
EAN: 4099889890891
MPN:
1-2141324-5
Unit Price (€ / pc.)
1.7850 € *
Available in 5 Days: 10,300 pcs. - if ordered today
Total Price:
1.79 € *
Price list
Quantity
Price per unit*
1 pcs.
1.7850 €
10 pcs.
1.6541 €
25 pcs.
1.5470 €
50 pcs.
1.4042 €
*incl. VAT plus shipping costs
Subject to prior sale
Plug housing, 1-2141324-5, TE Connectivity
Connector & housing type: housing for male terminals, Connector system: wire-to-wire, Sealable: yes, Hybrid connector: no, Primary locking feature: on the terminal, Number of positions: 6, Number of rows: 1, Operating voltage: 14 VDC, Nominal voltage architecture: 12 V, Body material: PBT GF, Primary product color: yellow, Mating tab width: 1.2 mm, Strain relief: no, Centerline (pitch): 4-Product height: 44 mm, Operating temperature (max): 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, 110 °C, 120 °C, 125 °C, Operating temperature range: -40-125 °C, -40-125 °C, Circuit application: signal, UL flammability rating: UL 94HB, Packaging method: box, Serviceable: yes, Connector position assurance capable: no
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection | crimp connection | |
| Colour | yellow | |
| Additional parts | unequipped | |
| Pin number | 6 pole | |
| Contact type | plug | |
| Type of locking | Yes | |
| Rated voltage | 14 V | |
| Version | straight | |
| Number of rows | 1 | |
| Grid | 4 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | IN |
| Customs tariff number | 85389011 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
