1-2141324-1 | TE Connectivity

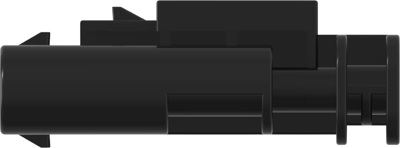

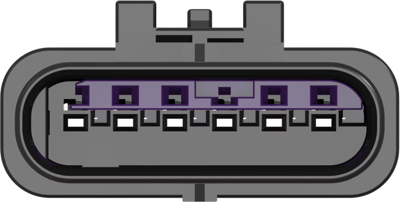

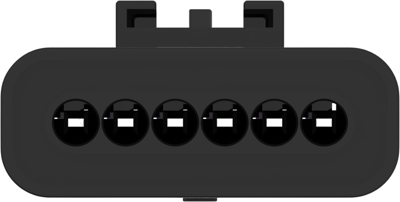

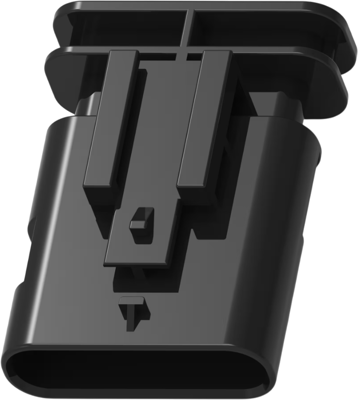

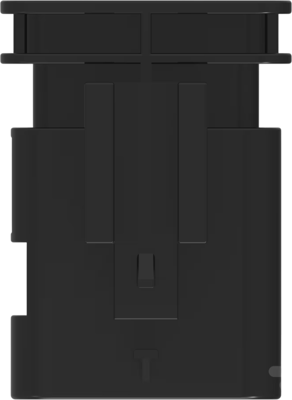

Plug, unequipped, 6 pole, straight, 1 row, black, 1-2141324-1
Unit Price (€ / pc.)
3.8675 € *
Available in 5 Days: 124 pcs. - if ordered today
Total Price:
3.87 € *
Price list
Quantity
Price per unit*
1 pcs.
3.8675 €
10 pcs.
3.5938 €
25 pcs.
3.3558 €
50 pcs.
3.0464 €
*incl. VAT plus shipping costs
Subject to prior sale
Plug housing, 1-2141324-1, TE Connectivity
Connector & housing type: housing for male terminals, Connector system: wire-to-wire, Sealable: yes, Hybrid connector: no, Primary locking feature: on the terminal, Number of positions: 6, Number of rows: 1, Nominal voltage architecture: 12 V, Operating voltage: 14 VDC, Cable exit angle: 180°, Body material: PBT GF, Primary product color: black, Mating tab width: 1.2 mm, Mounting feature: without, Centerline (pitch): 4-Height: 16.3 mm, Length: 32.2 mm, Width: 44 mm, Operating temperature (max): 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, 110 °C, 120 °C, 125 °C, Operating temperature range: -40-125 °C, -40-125 °C, Circuit application: signal, Packaging quantity: 750, Serviceable: yes, Connector position assurance capable: no
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated voltage | 14 V | |
| Version | straight | |
| Number of rows | 1 | |
| Additional parts | unequipped | |
| Pin number | 6 pole | |
| Grid | 4 mm | |
| Type of locking | Yes | |
| Contact type | plug | |
| Colour | black | |
| Connection | crimp connection |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | IN |
| Customs tariff number | 85472000 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
