1-2112891-2 | TE Connectivity
Plug, unequipped, 36 pole, straight, 4 rows, 1-2112891-2
Order No.: 36P4262
EAN: 4099889906011
MPN:
1-2112891-2
Unit Price (€ / pc.)
3.3558 € *
Standard delivery time from the manufacturer is: 32 Weeks

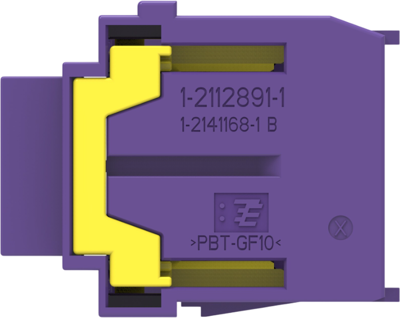

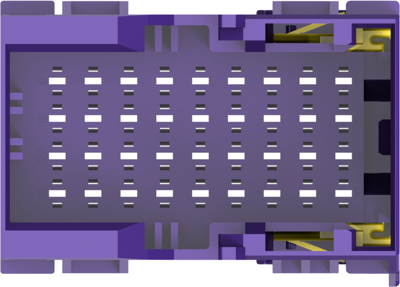

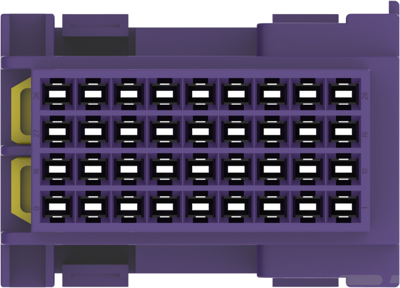

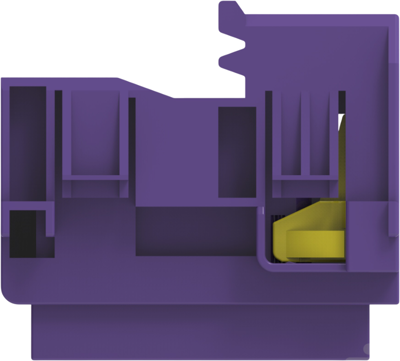

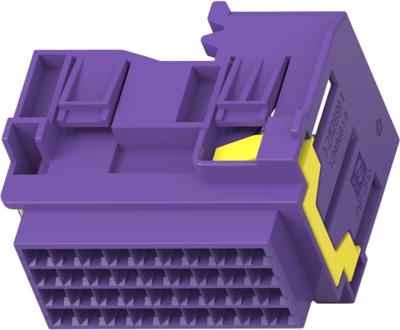

Plug housing, 1-2112891-2, TE Connectivity
Connector & housing type: housing for male terminals, Connector system: wire-to-wire, Sealable: no, Hybrid connector: no, Primary locking feature: on the terminal, Number of positions: 36, Number of rows: 4, Operating voltage: 36 VDC, Nominal voltage architecture: 12 V, 24 V, Body material: PBT GF, Primary product color: other, Mating tab width: 1.5-Mating alignment type: polarized, Centerline (pitch): 4-Row-to-row spacing: 6 mm, Operating temperature (max): 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, 110 °C, 120 °C, Operating temperature range: -40-120 °C, Circuit application: signal, UL flammability rating: UL 94HB, Serviceable: yes, Connector position assurance capable: no
Technical specifications
| Version | straight | |
| Type of locking | Yes | |
| Rated voltage | 36 V | |
| Pin number | 36 pole | |
| Grid | 4 mm | |
| Number of rows | 4 | |
| Contact type | plug | |
| Additional parts | unequipped |
Download
Logistics
| Customs tariff number | 85389011 |
| Country of origin | TH |
Compliance
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
