1-2112890-4 | TE Connectivity

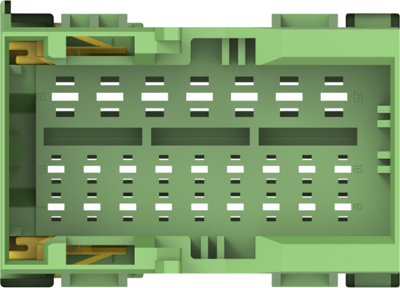

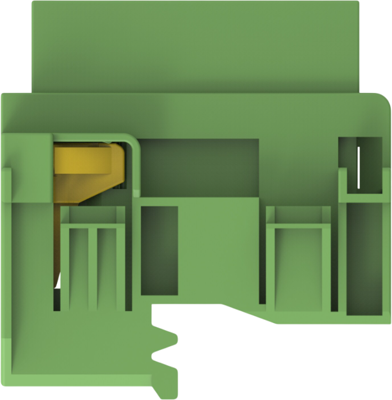

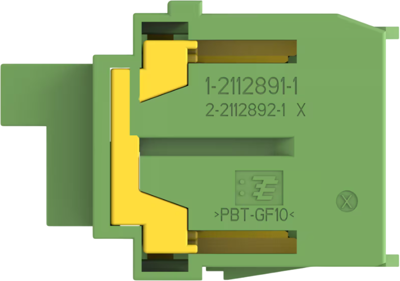

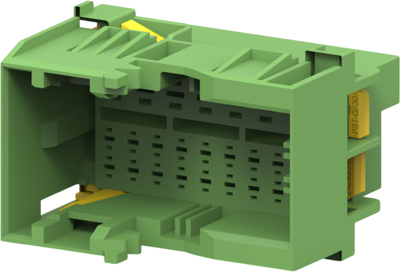

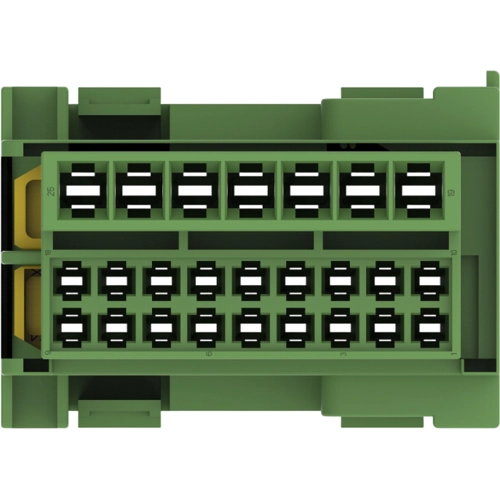

Plug, unequipped, 25 pole, straight, 3 rows, 1-2112890-4
Order No.: 36P4260
EAN: 4099889905991
MPN:
1-2112890-4
Unit Price (€ / pc.)
3.9865 € *
Standard delivery time from the manufacturer is: 10 Weeks
Total Price:
3.99 € *
Price list
Quantity
Price per unit*
1 pcs.
3.9865 €
10 pcs.
3.6414 €
50 pcs.
3.2606 €
100 pcs.
2.9393 €
*incl. VAT plus shipping costs
Subject to prior sale
Plug housing, 1-2112890-4, TE Connectivity
Row-to-row spacing: 4.2 mm, Connector & housing type: housing for male terminals, Connector system: wire-to-wire, Sealable: no, Hybrid connector: yes, Number of positions: 25, Number of rows: 3, Cable exit angle: 180°, Body material: PBT GF, Primary product color: other, Connector code: D, Mating tab width: 1.5-2.8 mm, Terminal position assurance: yes, Polarized, Centerline (pitch): 4-Height: 32 mm, Length: 44.6 mm, Operating temperature (max): 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, 110 °C, 120 °C, Operating temperature range: -40-120 °C, Circuit application: signal, UL flammability rating: UL 94-HB, Packaging method: box, Packaging quantity: 297, Serviceable: no, Connector position assurance capable: no
Technical specifications
| Version | straight | |
| Type of locking | Yes | |
| Rated voltage | 12 V | |
| Pin number | 25 pole | |
| Connection | crimp connection | |
| Grid | 4 mm | |
| Number of rows | 3 | |
| Contact type | plug | |
| Additional parts | unequipped |
Download
Logistics
| Customs tariff number | 85389011 |
| Country of origin | TW |
Compliance
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
