1-2112890-3 | TE Connectivity
Plug, unequipped, 25 pole, straight, 3 rows, blue, 1-2112890-3
Order No.: 36P4259
EAN: 4099889905984
MPN:
1-2112890-3
Unit Price (€ / pc.)
3.2725 € *
Standard delivery time from the manufacturer is: 10 Weeks

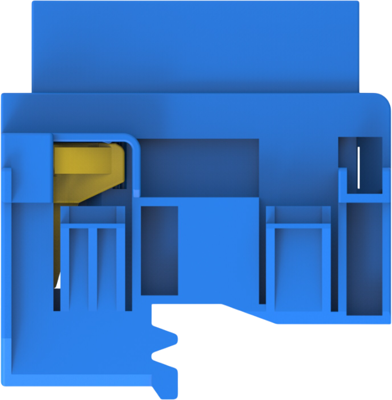

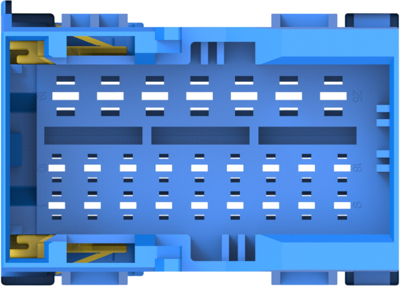

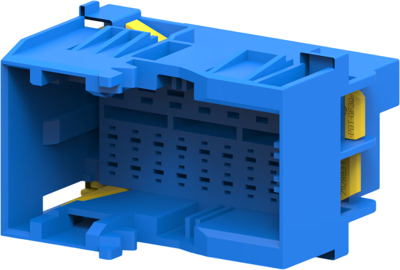

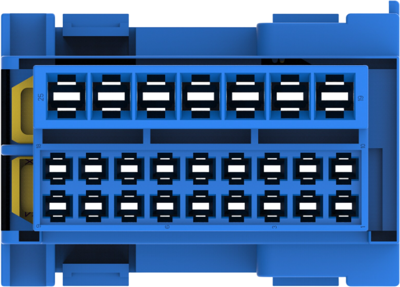

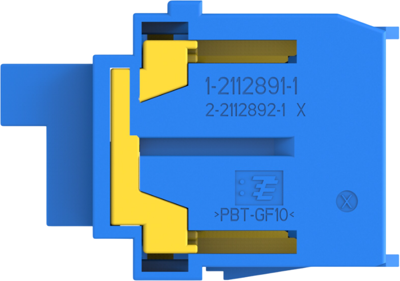

Plug housing, 1-2112890-3, TE Connectivity
Connector & housing type: housing for male terminals, Connector system: wire-to-wire, Sealable: no, Hybrid connector: yes, Primary locking feature: on the terminal, Number of positions: 25, Number of rows: 3, Body material: PBT GF, Primary product color: blue, Connector code: C, Mating tab width: 1.5-2.8 mm, Mating alignment type: polarized, Centerline (pitch): 4-Row-to-row spacing: 4.2 mm, Operating temperature (max): 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, 110 °C, 120 °C, Operating temperature range: -40-120 °C, Circuit application: signal, UL flammability rating: UL 94HB, Packaging method: box, Serviceable: no, Connector position assurance capable: no
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | straight | |
| Colour | blue | |
| Type of locking | Yes | |
| Rated voltage | 12 V | |
| Pin number | 25 pole | |
| Connection | crimp connection | |
| Grid | 4 mm | |
| Number of rows | 3 | |
| Contact type | plug | |
| Additional parts | unequipped |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85389011 |
| Country of origin | TW |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
