1-1924067-4 | TE Connectivity

Socket, unequipped, 2 pole, straight, 1 row, black, 1-1924067-4

Order No.: 35P9629
EAN: 4099889890402
MPN:
1-1924067-4
Series: MCON

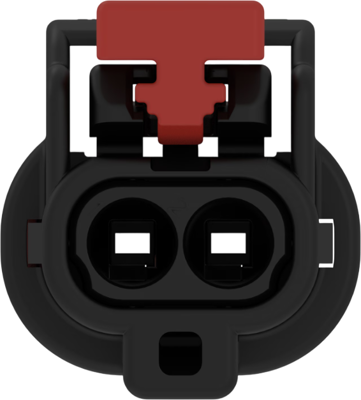

1-1924067-4 TE Connectivity Automotive Power Connectors Image 1

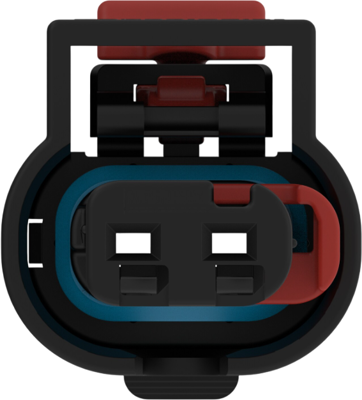

1-1924067-4 TE Connectivity Automotive Power Connectors Image 2

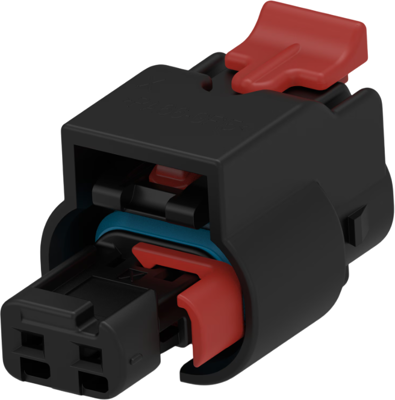

1-1924067-4 TE Connectivity Automotive Power Connectors Image 3

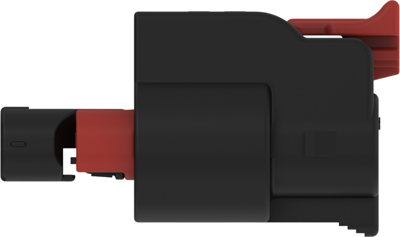

1-1924067-4 TE Connectivity Automotive Power Connectors Image 4

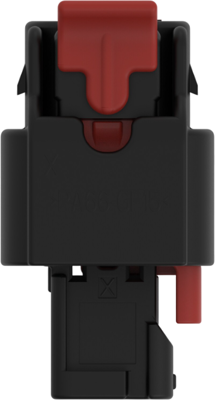

1-1924067-4 TE Connectivity Automotive Power Connectors Image 5
Image may differ
Unit Price (€ / pc.)
1.7374 € *
Standard delivery time from the manufacturer is: 29 Weeks
Total Price:
2,606.10 € *
*incl. VAT plus shipping costs
Subject to prior sale
1500 pcs.
1.7374 €

Socket housing, 1-1924067-4, TE Connectivity

Connector & housing type: housing for female terminals, Connector system: wire-to-board, wire-to-device, wire-to-wire, Sealable: yes, Hybrid connector: no, Primary locking feature: integrated in housing, Number of positions: 2, Number of rows: 1, Body material: PA GF, Primary product color: black, Mating tab width: 1.2 mm, Mounting feature: without, Polarized, Centerline (pitch): 4-Height: 15.8 mm, Length: 15 mm, Width: 26.5 mm, Operating temperature (max): 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, 110 °C, 120 °C, 125 °C, Operating temperature range: -40-125 °C, -40-125 °C, Circuit application: signal, Degree of protection: IP67, Serviceable: yes, Connector position assurance capable: yes

Technical specifications
Version straight
Colour black
Type of locking Yes
Rated voltage 250 V
Pin number 2 pole
Connection crimp connection
Grid 4 mm
Number of rows 1
Contact type socket
Additional parts unequipped
Logistics
Customs tariff number 85472000
Country of origin TH
Compliance
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
