1-1823440-3 | TE Connectivity

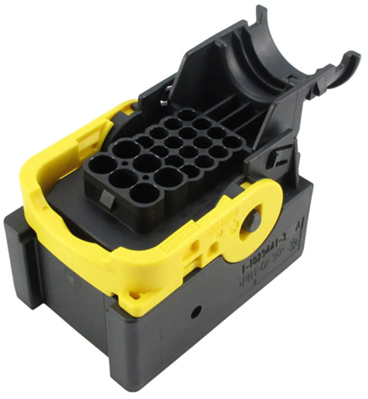

Socket, unequipped, 22 pole, angled, 4 rows, black, 1-1823440-3
Unit Price (€ / pc.)
22.2173 € *
Standard delivery time from the manufacturer is: 16 Weeks
Total Price:
22.22 € *
Price list
Quantity
Price per unit*
1 pcs.
22.2173 €
5 pcs.
21.0749 €
10 pcs.
19.7064 €
25 pcs.
17.9690 €
*incl. VAT plus shipping costs
Subject to prior sale
Socket housing, 1-1823440-3, TE Connectivity
Connector & housing type: housing for female terminals, Connector system: wire-to-wire, Sealable: yes, Hybrid connector: yes, Primary locking feature: on the terminal, Number of positions: 22, Number of rows: 3, 4, Operating voltage: 42 VDC, Nominal voltage architecture: 12 V, 24 V, 42 V, Body material: PBT GF, Primary product color: black, Mating tab width: 1.6 mm, 2.8 mm, Mating alignment type: polarized, Centerline (pitch): 4-6 mm, Row-to-row spacing: 6 mm, Operating temperature (max): 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, 110 °C, 120 °C, Operating temperature range: -40-120 °C, Circuit application: signal, UL flammability rating: UL 94V-0, Packaging method: box, Serviceable: yes, Connector position assurance capable: no
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Pin number | 22 pole | |
| Number of rows | 4 | |
| Type of locking | Yes | |
| Colour | black | |
| Rated current | 40 A | |
| Connection | crimp connection | |
| Additional parts | unequipped | |
| Rated voltage | 42 V | |
| Contact type | socket | |
| Grid | 4 mm | |
| Version | angled |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | JP |
| Customs tariff number | 85472000 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
