1-1718624-2 | TE Connectivity

Socket, unequipped, 2 pole, straight, 1 row, black, 1-1718624-2

Order No.: 35P8861
EAN: 4099889888218
MPN:
1-1718624-2

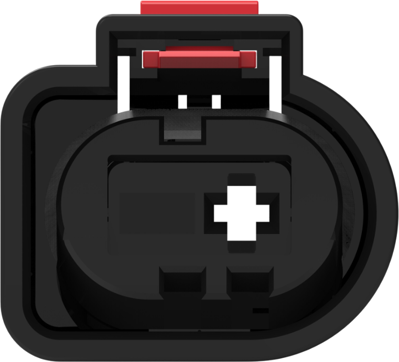

1-1718624-2 TE Connectivity Automotive Power Connectors Image 1

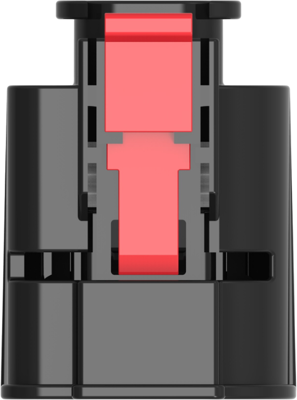

1-1718624-2 TE Connectivity Automotive Power Connectors Image 2

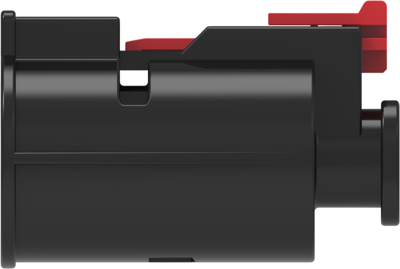

1-1718624-2 TE Connectivity Automotive Power Connectors Image 3

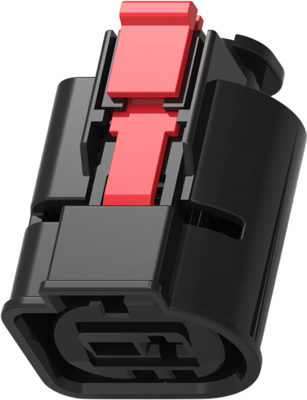

1-1718624-2 TE Connectivity Automotive Power Connectors Image 4

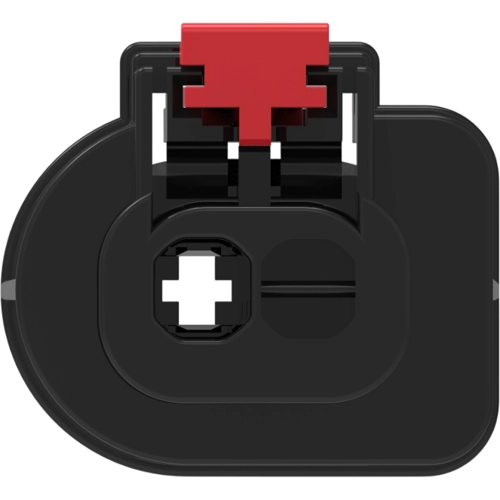

1-1718624-2 TE Connectivity Automotive Power Connectors Image 5
Image may differ
Unit Price (€ / pc.)
0.9282 € *
Standard delivery time from the manufacturer is: 37 Weeks
Total Price:
928.20 € *
*incl. VAT plus shipping costs
Subject to prior sale
1000 pcs.
0.9282 €

Socket housing, 1-1718624-2, TE Connectivity

Connector & housing type: housing for female terminals, Connector system: wire-to-wire, Sealable: yes, Hybrid connector: no, Primary locking feature: on the terminal, Number of positions: 2, Number of rows: 1, Operating voltage: 12 VDC, Nominal voltage architecture: 12 V, Body material: PA GF, Primary product color: black, Mating tab width: 2.8 mm, Mating alignment type: polarized, Product height: 17.6 mm, Operating temperature (max): 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, 110 °C, 120 °C, Operating temperature range: -40-120 °C, Circuit application: signal, Packaging quantity: 1000, Serviceable: yes, Connector position assurance capable: no

Technical specifications
Version straight
Colour black
Type of locking Yes
Rated voltage 12 V
Pin number 2 pole
Connection crimp connection
Grid 5 mm
Number of rows 1
Contact type socket
Additional parts unequipped
Logistics
Customs tariff number 85389091
Country of origin CN
Compliance
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
