1-1670916-1 | TE Connectivity

Socket, unequipped, 2 pole, straight, 1 row, black, 1-1670916-1

Order No.: 35P9637
EAN: 4099889890457
MPN:
1-1670916-1
Series: MCON

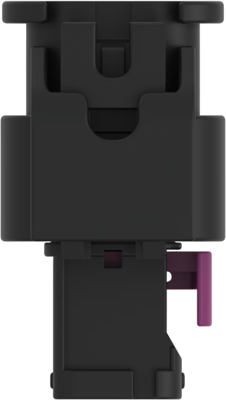

1-1670916-1 TE Connectivity Automotive Power Connectors Image 1

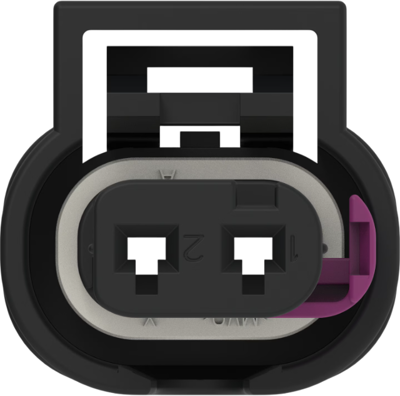

1-1670916-1 TE Connectivity Automotive Power Connectors Image 2

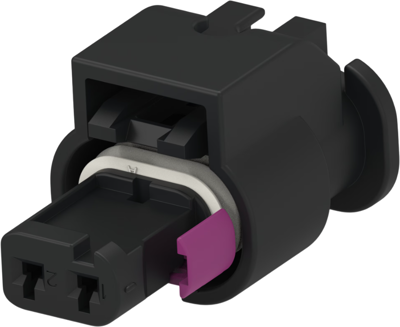

1-1670916-1 TE Connectivity Automotive Power Connectors Image 3

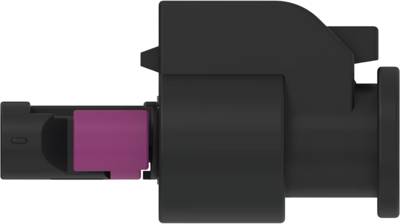

1-1670916-1 TE Connectivity Automotive Power Connectors Image 4

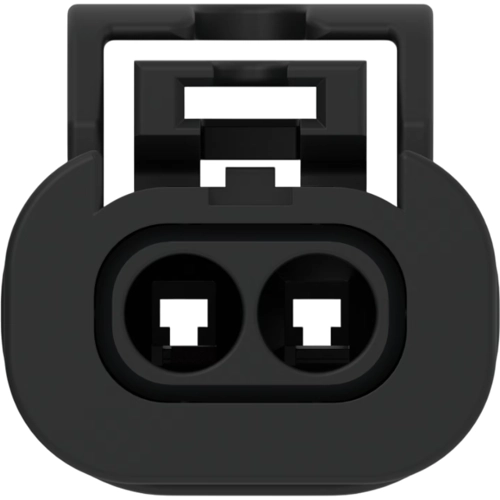

1-1670916-1 TE Connectivity Automotive Power Connectors Image 5
Image may differ
Unit Price (€ / pc.)
1.0829 € *
Available: 190 pcs.
Available in 5 Days: 2,210 pcs. - if ordered today
Total Price:
1.08 € *
Price list
Quantity
Price per unit*
1 pcs.
1.0829 €
10 pcs.
0.9758 €
50 pcs.
0.8806 €
100 pcs.
0.7854 €
*incl. VAT plus shipping costs
Subject to prior sale

Socket housing, 1-1670916-1, TE Connectivity

Connector & housing type: housing for female terminals, Connector system: wire-to-board, wire-to-device, wire-to-wire, Sealable: yes, Hybrid connector: no, Primary locking feature: on the terminal, Number of positions: 2, Number of rows: 1, Operating voltage: 12 VDC, Nominal voltage architecture: 12 V, Body material: PA GF, Primary product color: black, Mating tab width: 1.2 mm, Mating alignment type: polarized, Centerline (pitch): 4-Product height: 14.8 mm, Operating temperature (max): 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, 110 °C, 120 °C, 125 °C, 130 °C, Operating temperature range: -40-130 °C, Circuit application: signal, Degree of protection: IP6K9K, Packaging method: box, Serviceable: yes, Connector position assurance capable: yes

Technical specifications
Version straight
Colour black
Type of locking Yes
Rated voltage 12 V
Pin number 2 pole
Connection crimp connection
Grid 4 mm
Number of rows 1
Contact type socket
Additional parts unequipped
Logistics
Customs tariff number 85389099
Country of origin CN
Compliance
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
