1-1564534-1 | TE Connectivity

Plug, unequipped, 4 pole, straight, 1 row, black, 1-1564534-1

Order No.: 36P4139
EAN: 4099889905151
MPN:
1-1564534-1
Series: HDSCS

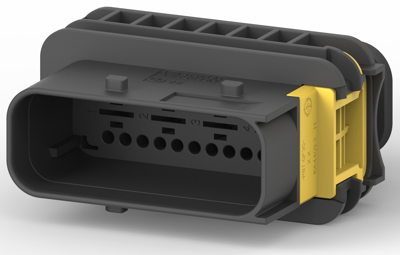

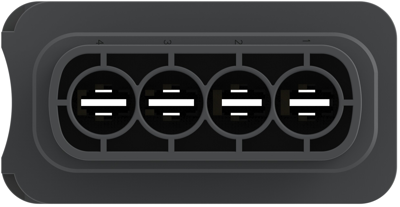

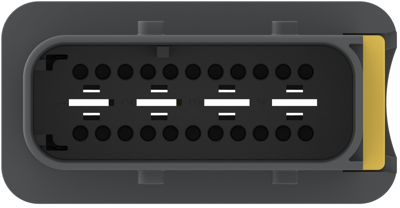

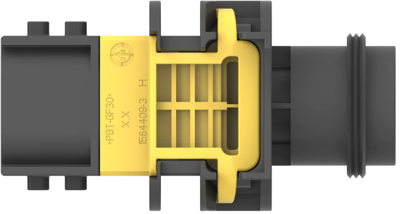

1-1564534-1 TE Connectivity Automotive Power Connectors Image 1
1-1564534-1 TE Connectivity Automotive Power Connectors Image 2
1-1564534-1 TE Connectivity Automotive Power Connectors Image 3
1-1564534-1 TE Connectivity Automotive Power Connectors Image 4
1-1564534-1 TE Connectivity Automotive Power Connectors Image 5
Image may differ
Unit Price (€ / pc.)
8.5799 € *
Available: 0 pcs.
Leadtime: 9 Weeks **
Total Price:
8.58 € *
Price list
Quantity
Price per unit*
1 pcs.
8.5799 €
10 pcs.
7.8897 €
50 pcs.
7.1043 €
100 pcs.
6.3903 €
*incl. VAT plus shipping costs
**Subject to prior sale

Housing terminals, 1-1564534-1, TE Connectivity

Housing for male terminals, Wire-to-wire, 4 Position, .354 in9 mm Centerline, Sealable, Black, Signal, Heavy duty sealed connector series

Technical specifications
Colour black
Type of locking Yes
Rated current 40 A
Grid 9 mm
Pin number 4 pole
Version straight
Additional parts unequipped
Connection crimp connection
Contact type plug
Rated voltage 60 V
Number of rows 1
Logistics
Country of origin CZ
Customs tariff number 85472000
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
