1-1456426-1 | TE Connectivity

Socket, unequipped, 4 pole, straight, 1 row, black, 1-1456426-1

Order No.: 35P9666
EAN: 4099889890716
MPN:
1-1456426-1
Series: MCON

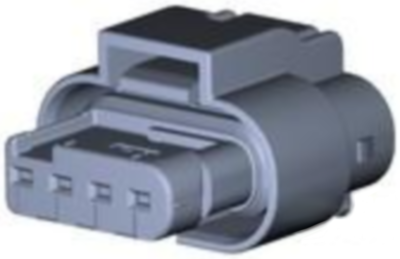

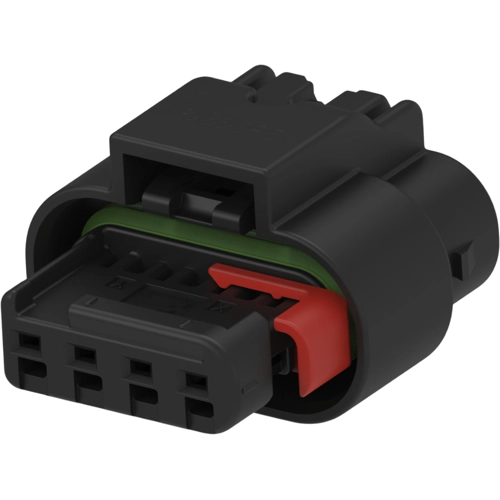

1-1456426-1 TE Connectivity Automotive Power Connectors Image 1

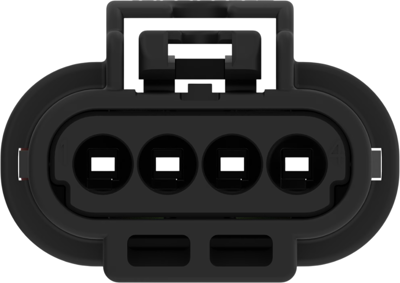

1-1456426-1 TE Connectivity Automotive Power Connectors Image 2

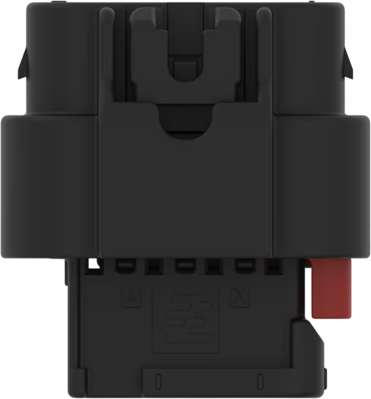

1-1456426-1 TE Connectivity Automotive Power Connectors Image 3

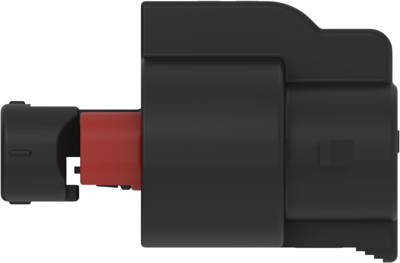

1-1456426-1 TE Connectivity Automotive Power Connectors Image 4
Image may differ
Unit Price (€ / pc.)
3.9627 € *
Available in 5 Days: 1,000 pcs. - if ordered today
Total Price:
3.96 € *
Price list
Quantity
Price per unit*
1 pcs.
3.9627 €
10 pcs.
3.6533 €
50 pcs.
3.2844 €
100 pcs.
2.9512 €
*incl. VAT plus shipping costs
Subject to prior sale

Socket housing, 1-1456426-1, TE Connectivity

Connector & housing type: housing for female terminals, Connector system: wire-to-board, wire-to-device, wire-to-wire, Sealable: yes, Hybrid connector: no, Primary locking feature: integrated in housing, Number of positions: 4, Number of rows: 1, Body material: PA GF, Primary product color: black, Mating tab width: 1.2 mm, Mating alignment type: polarized, Centerline (pitch): 4-Product height: 17.5 mm, Operating temperature (max): 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, 110 °C, 120 °C, 125 °C, 130 °C, 140 °C, 145 °C, 150 °C, Operating temperature range: -40-150 °C, Circuit application: signal, Degree of protection: IP67, Serviceable: yes, Connector position assurance capable: no

Technical specifications
Version straight
Colour black
Type of locking Yes
Rated voltage 250 V
Pin number 4 pole
Connection crimp connection
Grid 4 mm
Number of rows 1
Contact type socket
Additional parts unequipped
Logistics
Customs tariff number 85389091
Country of origin CZ
Compliance
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
