1-1452368-4 | TE Connectivity

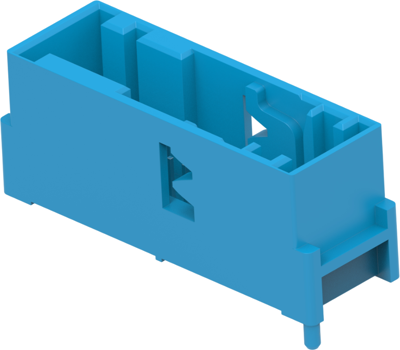

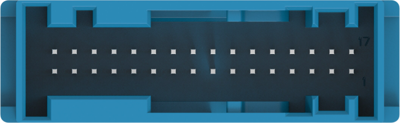

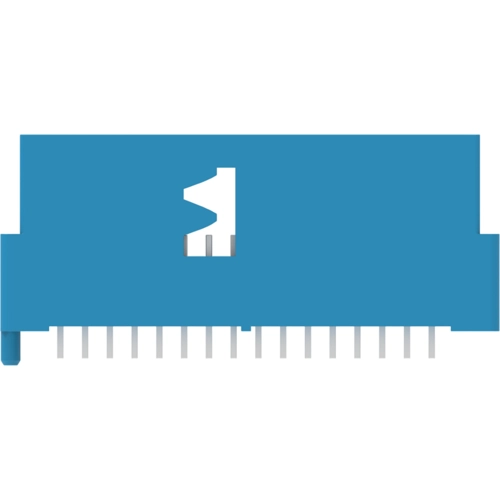

Plug, 32 pole, straight, 2 rows, blue, 1-1452368-4
Order No.: 36P1181
EAN: 4099889893847
MPN:
1-1452368-4
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
3.2963 € *
Standard delivery time from the manufacturer is: 12 Weeks
Total Price:
3.30 € *
Price list
Quantity
Price per unit*
1 pcs.
3.2963 €
10 pcs.
3.0583 €
25 pcs.
2.8560 €
50 pcs.
2.5942 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB mount header, 1-1452368-4, TE Connectivity
Hybrid header: no, Connector system: wire-to-board, Sealable: no, Number of signal positions: 32, Number of positions: 32, PCB mount orientation: vertical, Number of rows: 2, Primary product color: blue, Mating tab width: 0.63 mm, Mating tab thickness: 0.63 mm, Contact mating area plating material: tin (Sn), Termination method to printed circuit board: through hole-solder, PCB mount retention: without, Centerline (pitch): 2.54 mm, Product length: 51.15 mm, Shielded: no, Circuit application: signal, Packaging quantity: 220
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact type | plug | |
| Pin number | 32 pole | |
| Version | straight | |
| Grid | 2.54 mm | |
| Connection | solder connection | |
| Number of rows | 2 | |
| contact surface | tin-plated | |
| Type of locking | Yes | |
| Colour | blue |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | CZ |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
