1-1418640-5 | TE Connectivity

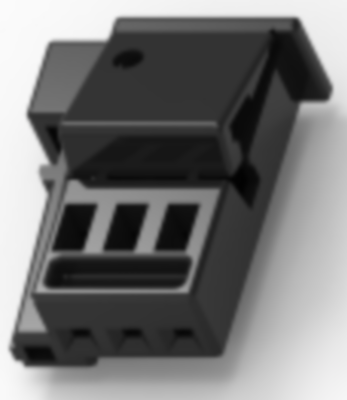

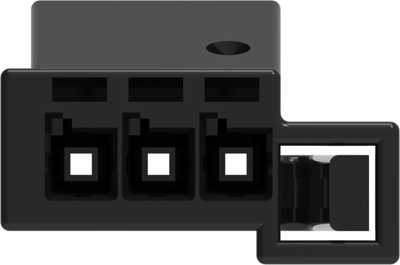

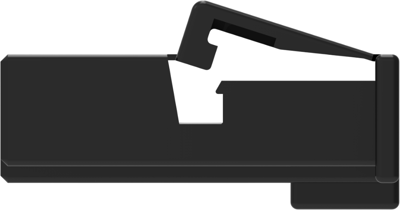

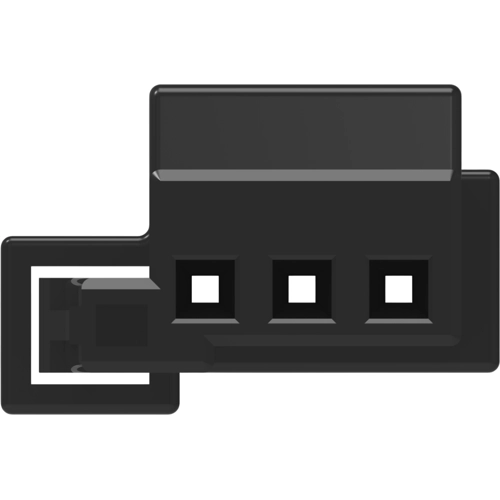

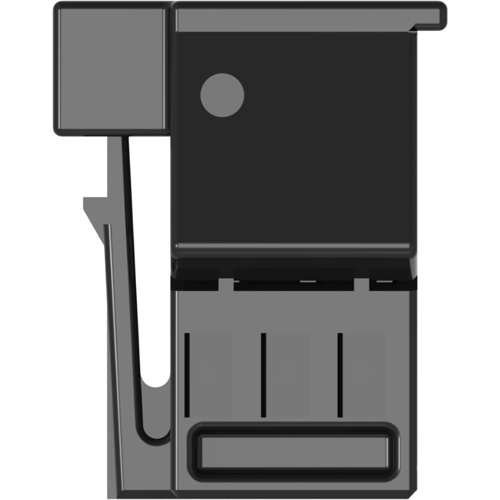

Socket, unequipped, 3 pole, straight, 1 row, black, 1-1418640-5
Unit Price (€ / pc.)
0.4522 € *
Standard delivery time from the manufacturer is: 18 Weeks
Total Price:
0.90 € *
Price list
Quantity
Price per unit*
2 pcs.
0.4522 €
10 pcs.
0.4046 €
50 pcs.
0.3570 €
100 pcs.
0.3213 €
*incl. VAT plus shipping costs
Subject to prior sale
Socket housing, 1-1418640-5, TE Connectivity
Connector & housing type: housing for female terminals, Connector system: wire-to-board, wire-to-device, wire-to-wire, Sealable: no, Hybrid connector: no, Primary locking feature: on the terminal, Number of positions: 3, Body material: PBT GF, Primary product color: black, Connector code: A, Mating tab width: 0.63 mm, Mating alignment type: polarized, Centerline (pitch): 2.54 mm, Operating temperature (max): 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, 110 °C, 120 °C, Operating temperature range: -40-120 °C, Circuit application: signal, Packaging method: box, Serviceable: yes, Connector position assurance capable: no
Technical specifications
| Version | straight | |
| Colour | black | |
| Type of locking | Yes | |
| Rated voltage | 28 V | |
| Pin number | 3 pole | |
| Connection | crimp connection | |
| Grid | 2.54 mm | |
| Number of rows | 1 | |
| Contact type | socket | |
| Additional parts | unequipped |
Download
Logistics
| Customs tariff number | 85389011 |
| Country of origin | CZ |
Compliance
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
