1-1418480-1 | TE Connectivity

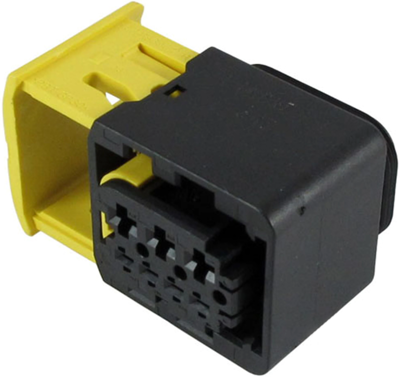

Socket, unequipped, 7 pole, straight, 2 rows, black, 1-1418480-1
Unit Price (€ / pc.)
2.0349 € *
Available in 5 Days: 3,076 pcs. - if ordered today
Total Price:
2.03 € *
Price list
Quantity
Price per unit*
1 pcs.
2.0349 €
10 pcs.
1.8921 €
25 pcs.
1.7612 €
50 pcs.
1.6065 €
*incl. VAT plus shipping costs
Subject to prior sale
Housing terminals, 1-1418480-1, TE Connectivity
Housing for female terminals, Wire-to-wire, 7 Position, 4 mm-6 mm Centerline, Sealable, Heavy duty sealed connector series
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 4 mm | |
| Contact type | socket | |
| Connection | crimp connection | |
| Rated voltage | 60 V | |
| Number of rows | 2 | |
| Type of locking | Yes | |
| Pin number | 7 pole | |
| Additional parts | unequipped | |
| Colour | black | |
| Version | straight | |
| Rated current | 40 A |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85472000 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
