1-1418463-9 | TE Connectivity

Socket, unequipped, 2 pole, straight, 1 row, black, 1-1418463-9

Order No.: 35P9940
EAN: 4099889891218
MPN:
1-1418463-9

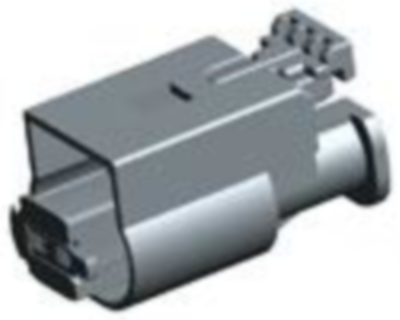

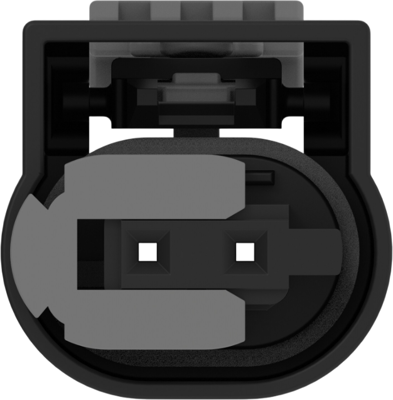

1-1418463-9 TE Connectivity Automotive Power Connectors Image 1

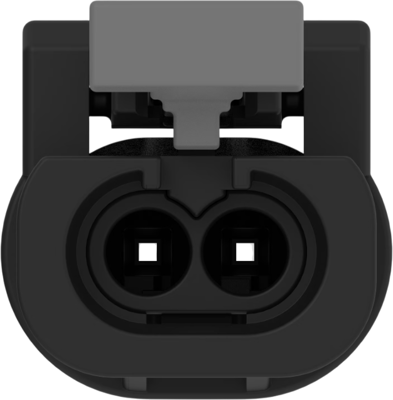

1-1418463-9 TE Connectivity Automotive Power Connectors Image 2

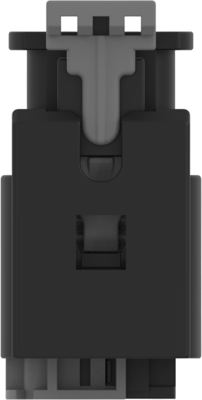

1-1418463-9 TE Connectivity Automotive Power Connectors Image 3

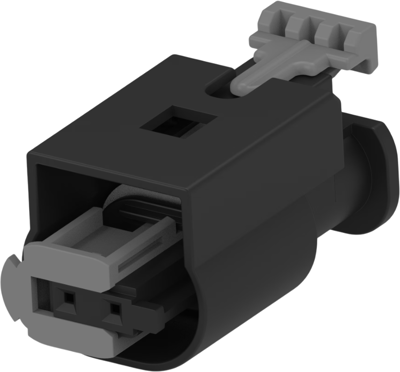

1-1418463-9 TE Connectivity Automotive Power Connectors Image 4

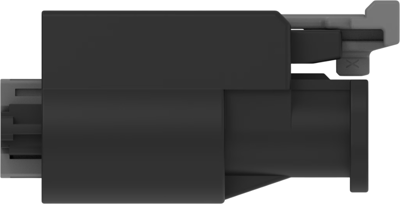

1-1418463-9 TE Connectivity Automotive Power Connectors Image 5
Image may differ
Unit Price (€ / pc.)
1.7850 € *
Standard delivery time from the manufacturer is: 12 Weeks
Total Price:
3,213.00 € *
*incl. VAT plus shipping costs
Subject to prior sale
1800 pcs.
1.7850 €

Socket housing, 1-1418463-9, TE Connectivity

Connector & housing type: housing for female terminals, Connector system: wire-to-board, wire-to-device, wire-to-wire, Sealable: yes, Hybrid connector: no, Primary locking feature: on the terminal, Number of positions: 2, Number of rows: 1, Body material: PBT GF, Primary product color: black, Connector code: A, Mating tab width: 0.63 mm, Strain relief: no, Centerline (pitch): 2.54 mm, Row-to-row spacing: 7.6 mm, 8.6 mm, 9 mm, Circuit application: signal, Degree of protection: IP69K, Packaging method: bulk, Serviceable: no, Connector position assurance capable: yes

Technical specifications
Version straight
Colour black
Type of locking Yes
Rated voltage 14 V
Pin number 2 pole
Connection crimp connection
Grid 4 mm
Number of rows 1
Contact type socket
Additional parts unequipped
Logistics
Customs tariff number 85389011
Country of origin IT
Compliance
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
