1-1376350-4 | TE Connectivity

Plug, 8 pole, angled, 2 rows, black, 1-1376350-4

Order No.: 35P8719
EAN: 4099889887624
MPN:
1-1376350-4

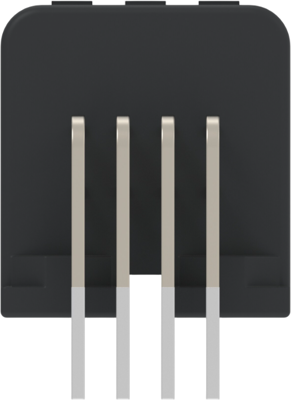

1-1376350-4 TE Connectivity Automotive Power Connectors Image 1

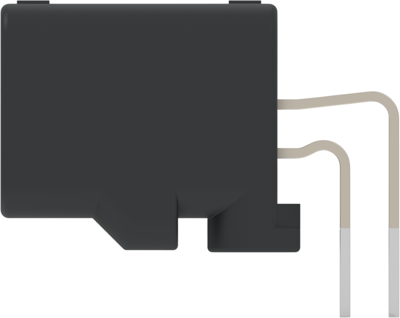

1-1376350-4 TE Connectivity Automotive Power Connectors Image 2

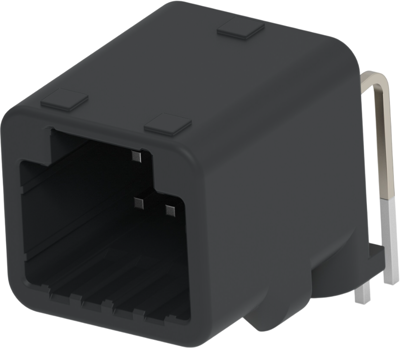

1-1376350-4 TE Connectivity Automotive Power Connectors Image 3

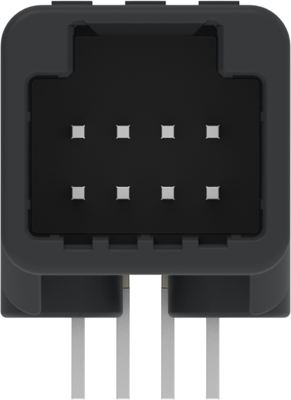

1-1376350-4 TE Connectivity Automotive Power Connectors Image 4

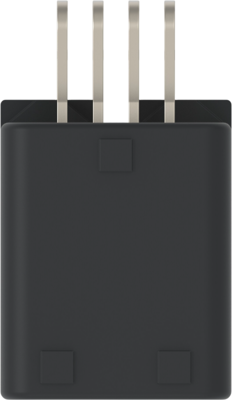

1-1376350-4 TE Connectivity Automotive Power Connectors Image 5
Image may differ
Unit Price (€ / pc.)
1.6303 € *
Standard delivery time from the manufacturer is: 29 Weeks
Total Price:
1,825.94 € *
*incl. VAT plus shipping costs
Subject to prior sale
1120 pcs.
1.6303 €

PCB mount header, 1-1376350-4, TE Connectivity

Hybrid header: no, Sealable: no, Connector & contact terminates to: printed circuit board, Number of signal positions: 8, Number of positions: 8, PCB mount orientation: horizontal, Number of rows: 2, Operating voltage: 12 VDC, Primary product color: black, Mating tab width: 0.64 mm, Mating tab thickness: 0.64 mm, Contact mating area plating material: tin (Sn), Termination method to printed circuit board: through hole-solder, PCB mount retention: without, Centerline (pitch): 2.2 mm, Product length: 24.47 mm, Operating temperature (max): 65 °C, 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, Operating temperature range: -30-105 °C, Shielded: no, Circuit application: signal, UL flammability rating: UL 94HB, Packaging quantity: 32, Interface number: 376353

Technical specifications
Version angled
Colour black
Type of locking Yes
Rated voltage 12 V
contact surface tin-plated
Pin number 8 pole
Connection solder connection
Grid 2.2 mm
Number of rows 2
Contact type plug
Logistics
Customs tariff number 85366990
Country of origin DE
Compliance
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
