2199248-5 | TE Connectivity

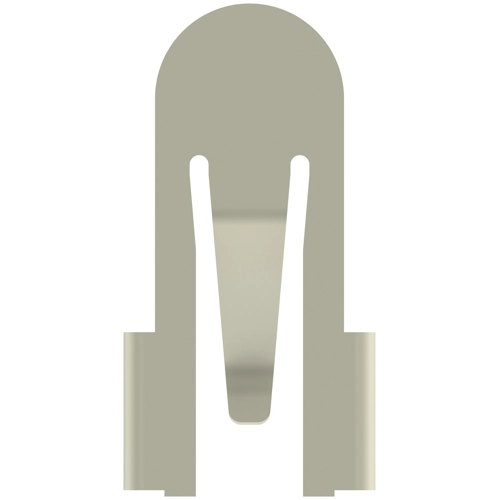

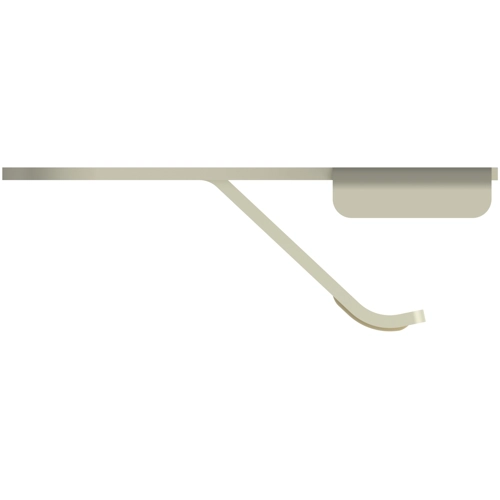

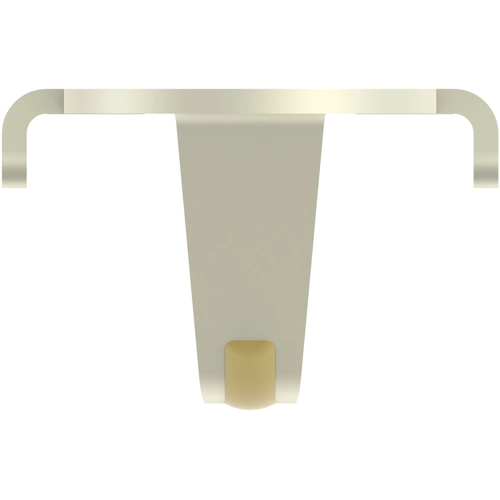

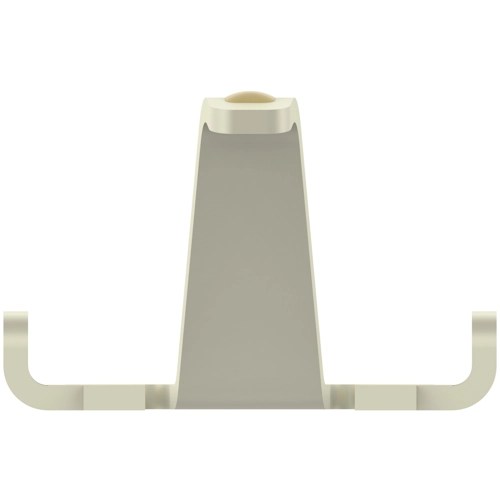

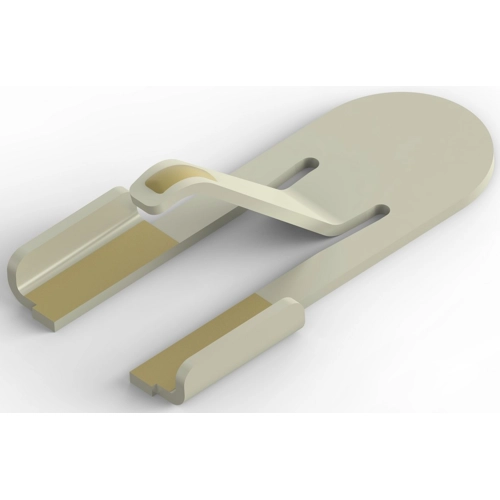

Spring contact for PCB connector, 2199248-5
Order No.: 37P2864
EAN: 4099891030957
MPN:
2199248-5
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
0.0893 € *
Available in 12 Days: 195,179 pcs. - if ordered today
PCB spring contact, 2199248-5, TE Connectivity
Spring Finger Type: C-Clip, Scalable: Yes, Connector System: Board-to-Board, Sealable: No, Connector & Contact Terminates To: Printed Circuit Board, Side Protected: Yes, Number of Positions: 1, Contact Base Material: Stainless Steel, Contact Length: 3.9 mm, Contact Width: 2 mm, Contact Working Range (Low): .5 mm, Contact Working Range (High): 1.1 mm, Uncompressed Height: 1.3 mm, Operating Temperature Range: -40 - 85 °C, Circuit Application: Signal.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | spring contact | |
| Suitable for | PCB connector |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85389011 |
| Country of origin | TW |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
