2108614-5 | TE Connectivity
Spring contact for PCB connector, 2108614-5
Order No.: 37P2829
EAN: 4099891030735
MPN:
2108614-5
Unit Price (€ / pc.)
0.2523 € *
Standard delivery time from the manufacturer is: 10 Weeks

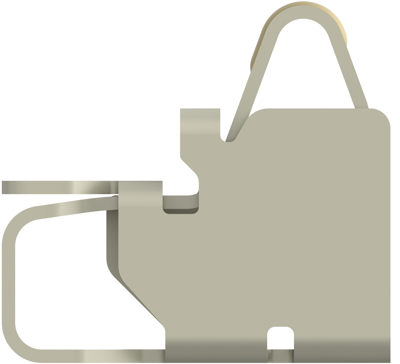

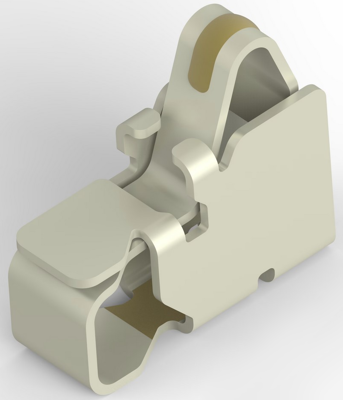

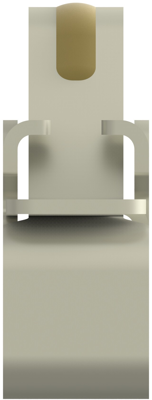

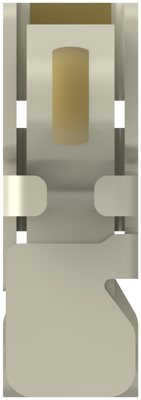

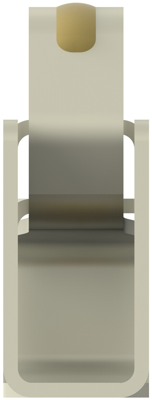

PCB spring contact, 2108614-5, TE Connectivity
Spring Finger Type: Preloaded - C-Clip, Scalable: Yes, Connector System: Board-to-Board, Sealable: No, Connector & Contact Terminates To: Printed Circuit Board, Side Protected: Yes, Number of Positions: 1, Contact Base Material: Copper Alloy, Contact Length: 2.9 mm, Contact Width: 1 mm, Contact Working Range (Low): 1.9 mm, Contact Working Range (High): 2.3 mm, Uncompressed Height: 2.7 mm, Operating Temperature Range: -40 - 85 °C,-40 - 85 °C, Circuit Application: Signal.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | spring contact | |
| Suitable for | PCB connector |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TW |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
