2040852-1 | TE Connectivity
Spring contact for PCB connector, 2040852-1
Order No.: 37P2834
EAN: 4099891030780
MPN:
2040852-1
Unit Price (€ / pc.)
0.2261 € *
Available: 0 pcs.
Available in 5 Days: 20,000 pcs.
Leadtime: 6 Weeks **
Total Price:
2,261.00 € *
*incl. VAT plus shipping costs
**Subject to prior sale
10000 pcs.
0.2261 €

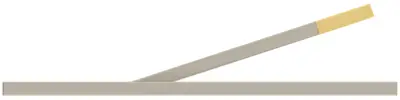

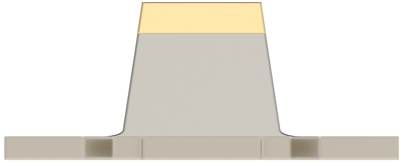

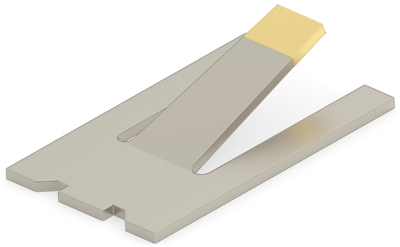

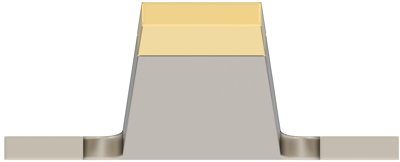

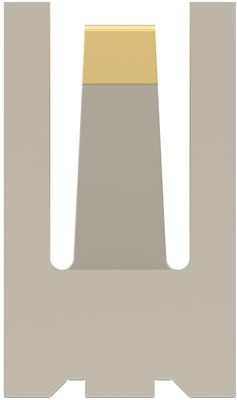

PCB spring contact, 2040852-1, TE Connectivity
Spring Finger Type: C-Clip, Scalable: No, Connector System: Board-to-Board, Sealable: No, Connector & Contact Terminates To: Printed Circuit Board, Side Protected: No, Number of Positions: 1, Contact Base Material: Copper Alloy, Contact Length: 3.4 mm, Contact Width: 2 mm, Contact Working Range (Low): .3 mm, Contact Working Range (High): .6 mm, Uncompressed Height: .8 mm, Operating Temperature Range: -40 - 85 °C, Circuit Application: Signal.
Technical specifications
| Suitable for | Leiterplattensteckverbinder | |
| Accessory Type | Federkontakt |
Download
Logistics
| Country of origin | TW |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
