1734300-1 | TE Connectivity
Spring contact for PCB connector, 1734300-1
Order No.: 37P2848
EAN: 4099891030858
MPN:
1734300-1
Unit Price (€ / pc.)
0.5593 € *
Available: 0 pcs.
Leadtime: 11 Weeks **
Total Price:
13,982.50 € *
*incl. VAT plus shipping costs
**Subject to prior sale
25000 pcs.
0.5593 €

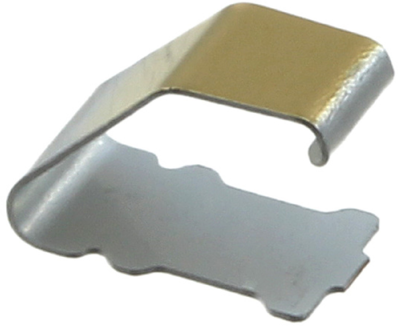

PCB spring contact, 1734300-1, TE Connectivity
Spring Finger Type: C-Clip, Scalable: No, Connector System: Board-to-Board, Sealable: No, Connector & Contact Terminates To: Printed Circuit Board, Side Protected: No, Number of Positions: 1, Contact Base Material: Copper Alloy, Contact Length: 4.5 mm, Contact Width: 2.5 mm, Contact Working Range (Low): 1.9 mm, Contact Working Range (High): 2.8 mm, Uncompressed Height: 3 mm, Operating Temperature Range: -40 - 85 °C,-40 - 85 °C, Circuit Application: Signal.
Technical specifications
| Suitable for | Leiterplattensteckverbinder | |
| Accessory Type | Federkontakt |
Download
Logistics
| Country of origin | TH |
| Customs tariff number | 85389091 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
