1-1469492-7 | TE Connectivity

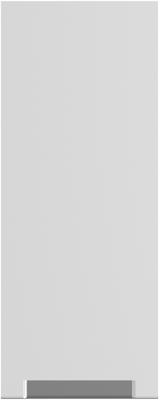

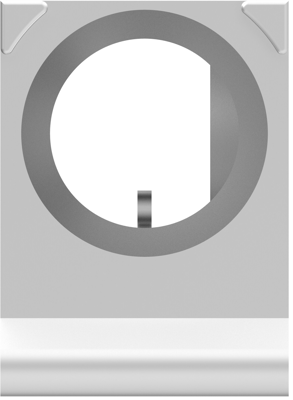

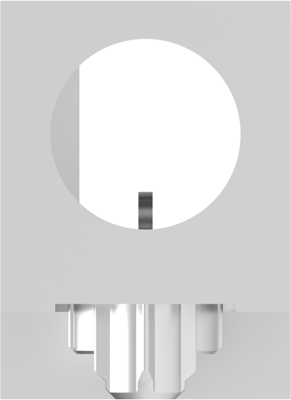

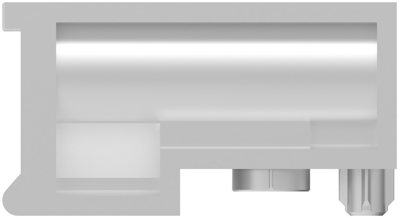

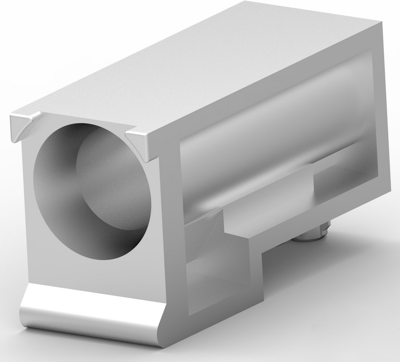

Guide module, angled for backplane guides, 1-1469492-7
Unit Price (€ / pc.)
14.8631 € *
Available in 5 Days: 1,624 pcs. - if ordered today
Backplane Guide Hardware, 1-1469492-7, TE Connectivity
Backplane Guide Hardware Type: Guide Socket Module, Connector System: Board-to-Board, Connector & Contact Terminates To: Printed Circuit Board, PCB Mount Orientation: Right Angle, Number of Positions: 1, Guide Component Plating Material: Silver, Contact Current Rating (Max): 1 A, Guide Hardware: With, Connector Mounting Type: Board Mount, Guide Housing Material: Zinc Alloy, Operating Temperature Range: -55 - 105 °C, Compatible With Backplane Product Type: VITA 46 3U & 6U 9mm Daughtercard, VITA Standard: VITA 46.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | guide module | |
| Version | angled | |
| Suitable for | backplane guides |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | AT |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
