2112046-1 | TE Connectivity

Cover cap, for socket header, 2112046-1

Order No.: 36P4216
EAN: 4099889909180
MPN:
2112046-1
Series: LEAVYSEAL
2112046-1 TE Connectivity Accessories for Automotive Connectors
Image may differ
Unit Price (€ / pc.)
2.5823 € *
Standard delivery time from the manufacturer is: 16 Weeks
Total Price:
2.58 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
2.5823 €

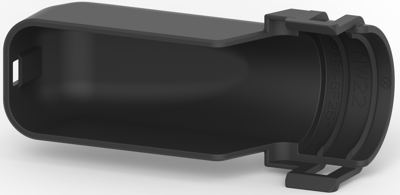

Cable exit cover, 2112046-1, TE Connectivity

Protection and strain relief accessory type: cover-cable exit, Connector system: Wire-to-Board, Wire-to-Device, Number of positions: 26, Cable exit angle: 90° (right angle), Primary product color: black, Primary product material: PA GF, Strain relief: without, Cable bundle diameter: 26 mm, Operating temperature (max): 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, 110 °C, 120 °C, 125 °C, 130 °C, 140 °C, Operating temperature range: -40-140 °C, UL flammability rating: UL 94V-0.

Technical specifications
Filter Property Value
Suitable for socket header
Product type cover cap
Logistics
Property Value
Country of origin JP
Customs tariff number 85389011
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
