YFF18SC1H223MT0H0N | TDK

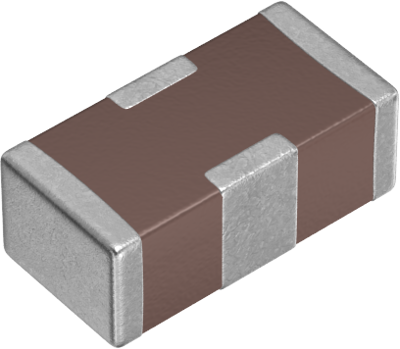

3-terminal filters, 10 MHz to 3 GHz, 1 A, 50 V, SMD, YFF18SC1H223MT0H0N

default S
default L
Total price
(0.11 € * / pcs.)
0.00 €
Currently not in stock, we will order for you
Quantity
Price per unit*
4000 pcs.
0.11 €
*incl. VAT plus shipping costs
Description

Product by TDK at Bürklin Elektronik

3-terminal filter, YFF18SC1H223MT0H0N, TDK

The YFF18SC1H223MT0H0N is a 3-terminal filter for signal line.

Features

  • Small and high-performance EMC components
  • Good attenuation characteristic in high frequency ranges

Applications

  • Digital signal circuits
  • I/O interface sections of devices with electric circuits and the area around connectors
  • Low-current power line of communication terminal devices
  • AV, information devices
Technical specifications
ohmic resistance 0.05 Ω
Connection SMD
Version 3-terminal filters
Rated Voltage 50 V
integrated switch No
max. frequency 3000 MHz
max. operating temperature 125 °C
min. frequency 10 MHz
min. operating temperature -55 °C
With fuse No
Rated current 1 A
Show similar products (0)
Logistics
Customs tariff number 85363010
Original Packaging Reel with 4,000 pieces
Compliance
Guidline date 3/31/15
RoHS confom Yes
SVHC date 1/16/20
SVHC free Yes
Variations
1 item with 10 variations
Item description
Price list
Total
ohmic resistance
Version
Rated Voltage
max. frequency
Connection
min. operating temperature
max. operating temperature
Rated current
min. frequency
3-terminal filters, 2 to 6 GHz, 1 A, 50 V, SMD, YFF18SC1H470MT0H0N
Order No.:
 46D6896
Manufacturer:
 TDK
Manufacturer SKU
 YFF18SC1H470MT0H0N
4000 pcs.
0.10 €
0.00 € *
Currently not in stock, we will order for you
0.3 Ω
3-terminal filters
50 V
6000 MHz
SMD
-55 °C
125 °C
1 A
2000 MHz
3-terminal filters, 20 MHz to 3 GHz, 1 A, 50 V, SMD, YFF18SC1H103MT0H0N
Order No.:
 46D6891
Manufacturer:
 TDK
Manufacturer SKU
 YFF18SC1H103MT0H0N
4000 pcs.
0.10 €
0.00 € *
Currently not in stock, we will order for you
0.08 Ω
3-terminal filters
50 V
3000 MHz
SMD
-55 °C
125 °C
1 A
20 MHz
3-terminal filters, 10 MHz to 3 GHz, 1 A, 50 V, SMD, YFF18SC1H223MT0H0N
Order No.:
 46D6895
Manufacturer:
 TDK
Manufacturer SKU
 YFF18SC1H223MT0H0N
4000 pcs.
0.11 €
0.00 € *
Currently not in stock, we will order for you
0.05 Ω
3-terminal filters
50 V
3000 MHz
SMD
-55 °C
125 °C
1 A
10 MHz
3-terminal filters, 90 MHz to 3 GHz, 1 A, 50 V, SMD, YFF18SC1H222MT0H0N
Order No.:
 46D6894
Manufacturer:
 TDK
Manufacturer SKU
 YFF18SC1H222MT0H0N
4000 pcs.
0.10 €
0.00 € *
Currently not in stock, we will order for you
0.3 Ω
3-terminal filters
50 V
3000 MHz
SMD
-55 °C
125 °C
1 A
90 MHz
3-terminal filters, 40 MHz to 3 GHz, 1 A, 50 V, SMD, YFF18SC1H472MT0H0N
Order No.:
 46D6898
Manufacturer:
 TDK
Manufacturer SKU
 YFF18SC1H472MT0H0N
4000 pcs.
0.10 €
0.00 € *
Currently not in stock, we will order for you
0.3 Ω
3-terminal filters
50 V
3000 MHz
SMD
-55 °C
125 °C
1 A
40 MHz
3-terminal filters, 1.5 to 6 GHz, 1 A, 50 V, SMD, YFF18SC1H101MT0H0N
Order No.:
 46D6889
Manufacturer:
 TDK
Manufacturer SKU
 YFF18SC1H101MT0H0N
4000 pcs.
0.10 €
0.00 € *
Currently not in stock, we will order for you
0.3 Ω
3-terminal filters
50 V
6000 MHz
SMD
-55 °C
125 °C
1 A
1500 MHz
3-terminal filters, 800 MHz to 6 GHz, 1 A, 50 V, SMD, YFF18SC1H221MT0H0N
Order No.:
 46D6893
Manufacturer:
 TDK
Manufacturer SKU
 YFF18SC1H221MT0H0N
4000 pcs.
0.10 €
0.00 € *
Currently not in stock, we will order for you
0.3 Ω
3-terminal filters
50 V
6000 MHz
SMD
-55 °C
125 °C
1 A
800 MHz
3-terminal filters, 2 to 3 GHz, 1 A, 50 V, SMD, YFF18SC1H102MT0H0N
Order No.:
 46D6890
Manufacturer:
 TDK
Manufacturer SKU
 YFF18SC1H102MT0H0N
4000 pcs.
0.10 €
0.00 € *
Currently not in stock, we will order for you
0.3 Ω
3-terminal filters
50 V
3000 MHz
SMD
-55 °C
125 °C
1 A
2000 MHz
3-terminal filters, 400 MHz to 6 GHz, 1 A, 50 V, SMD, YFF18SC1H471MT0H0N
Order No.:
 46D6897
Manufacturer:
 TDK
Manufacturer SKU
 YFF18SC1H471MT0H0N
4000 pcs.
0.10 €
0.00 € *
Currently not in stock, we will order for you
0.3 Ω
3-terminal filters
50 V
6000 MHz
SMD
-55 °C
125 °C
1 A
400 MHz
3-terminal filters, 4 to 6 GHz, 1 A, 50 V, SMD, YFF18SC1H220MT0H0N
Order No.:
 46D6892
Manufacturer:
 TDK
Manufacturer SKU
 YFF18SC1H220MT0H0N
4000 pcs.
0.10 €
0.00 € *
Currently not in stock, we will order for you
0.3 Ω
3-terminal filters
50 V
6000 MHz
SMD
-55 °C
125 °C
1 A
4000 MHz
