TDK

YFF18AC1E223MT0Y0N | TDK

3-terminal filters, 10 MHz to 3 GHz, 1 A, 25 V, SMD, YFF18AC1E223MT0Y0N

default S
front S
side S
back S
default L
front L
side L
back L
Total price
(0.11 € * / pcs.)
0.00 €
Currently not in stock, we will order for you
Quantity
Price per unit*
4000 pcs.
0.11 €
*incl. VAT plus shipping costs
Description

Product by TDK at Bürklin Elektronik

3-terminal filter, YFF18AC1E223MT0Y0N, TDK

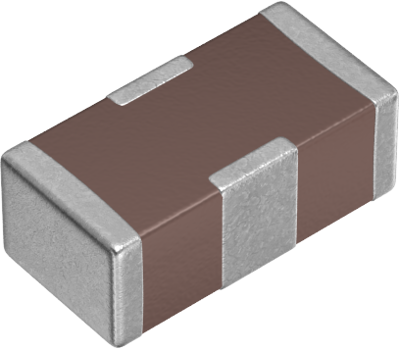

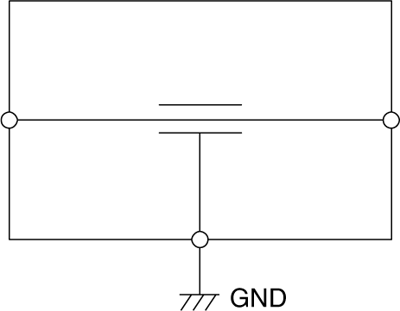

The YFF18AC1E223MT0Y0N is a 3-terminal feed through filter surface-mounted component, which has a feed-through structure that direct current passes inside the component. This product`s structure makes a distance to GND short, and a parallel effect of the GND electrodes reduces ESL.

Features

  • Superior attenuation characteristic in wide bandwidth
  • Contributes to reduction in the number of decoupling MLCCs
  • AEC-Q200 compliant

Applications

  • EMC countermeasures and decoupling use in power lines for automotive applications such as ADAS
  • Autonomous driving system ECU
Technical specifications
Connection SMD
Version 3-terminal filters
Rated Voltage 25 V
integrated switch No
max. frequency 3000 MHz
max. operating temperature 125 °C
min. frequency 10 MHz
min. operating temperature -55 °C
With fuse No
Rated current 1 A
Show similar products (0)
Logistics
Customs tariff number 85363010
Compliance
Guidline date 3/31/15
RoHS confom Yes
SVHC date 1/16/20
SVHC free Yes
Variations
1 item with 12 variations
Item description
Price list
Total
ohmic resistance
Version
Rated Voltage
max. frequency
Connection
min. operating temperature
max. operating temperature
Rated current
min. frequency
3-terminal filters, 800 MHz to 6 GHz, 1 A, 50 V, SMD, YFF18AC1H221MT0Y0N
Order No.:
 72D1490
Manufacturer:
 TDK
Manufacturer SKU
 YFF18AC1H221MT0Y0N
4000 pcs.
0.11 €
0.00 € *
Currently not in stock, we will order for you
3-terminal filters
50 V
6000 MHz
SMD
-55 °C
125 °C
1 A
800 MHz
3-terminal filters, 10 MHz to 3 GHz, 1 A, 25 V, SMD, YFF18AC1E223MT0Y0N
Order No.:
 72D1485
Manufacturer:
 TDK
Manufacturer SKU
 YFF18AC1E223MT0Y0N
4000 pcs.
0.11 €
0.00 € *
Currently not in stock, we will order for you
3-terminal filters
25 V
3000 MHz
SMD
-55 °C
125 °C
1 A
10 MHz
3-terminal filters, 1.5 to 6 GHz, 1 A, 50 V, SMD, YFF18AC1H101MT0Y0N
Order No.:
 72D1486
Manufacturer:
 TDK
Manufacturer SKU
 YFF18AC1H101MT0Y0N
4000 pcs.
0.11 €
0.00 € *
Currently not in stock, we will order for you
3-terminal filters
50 V
6000 MHz
SMD
-55 °C
125 °C
1 A
1500 MHz
3-terminal filters, 4 to 6 GHz, 1 A, 50 V, SMD, YFF18AC1H220MT0Y0N
Order No.:
 72D1489
Manufacturer:
 TDK
Manufacturer SKU
 YFF18AC1H220MT0Y0N
4000 pcs.
0.11 €
0.00 € *
Currently not in stock, we will order for you
3-terminal filters
50 V
6000 MHz
SMD
-55 °C
125 °C
1 A
4000 MHz
3-terminal filters, 40 MHz to 3 GHz, 1 A, 50 V, SMD, YFF18AC1H472MT0Y0N
Order No.:
 72D1494
Manufacturer:
 TDK
Manufacturer SKU
 YFF18AC1H472MT0Y0N
4000 pcs.
0.11 €
0.00 € *
Currently not in stock, we will order for you
3-terminal filters
50 V
3000 MHz
SMD
-55 °C
125 °C
1 A
40 MHz
3-terminal filters, 200 MHz to 3 GHz, 1 A, 50 V, SMD, YFF18AC1H102MT0Y0N
Order No.:
 72D1487
Manufacturer:
 TDK
Manufacturer SKU
 YFF18AC1H102MT0Y0N
4000 pcs.
0.11 €
0.00 € *
Currently not in stock, we will order for you
3-terminal filters
50 V
3000 MHz
SMD
-55 °C
125 °C
1 A
200 MHz
3-terminal filters, 2 to 6 GHz, 1 A, 50 V, SMD, YFF18AC1H470MT0Y0N
Order No.:
 72D1492
Manufacturer:
 TDK
Manufacturer SKU
 YFF18AC1H470MT0Y0N
4000 pcs.
0.11 €
0.00 € *
Currently not in stock, we will order for you
3-terminal filters
50 V
6000 MHz
SMD
-55 °C
125 °C
1 A
2000 MHz
3-terminal filters, 20 MHz to 3 GHz, 1 A, 50 V, SMD, YFF18AC1H103MT0Y0N
Order No.:
 72D1488
Manufacturer:
 TDK
Manufacturer SKU
 YFF18AC1H103MT0Y0N
4000 pcs.
0.11 €
0.00 € *
Currently not in stock, we will order for you
3-terminal filters
50 V
3000 MHz
SMD
-55 °C
125 °C
1 A
20 MHz
3-terminal filters, 400 MHz to 6 GHz, 1 A, 50 V, SMD, YFF18AC1H471MT0Y0N
Order No.:
 72D1493
Manufacturer:
 TDK
Manufacturer SKU
 YFF18AC1H471MT0Y0N
4000 pcs.
0.11 €
0.00 € *
Currently not in stock, we will order for you
3-terminal filters
50 V
6000 MHz
SMD
-55 °C
125 °C
1 A
400 MHz
3-terminal filters, 2 MHz to 4 GHz, 1 A, 16 V, SMD, YFF18AC1C104MT0Y0N
Order No.:
 72D1484
Manufacturer:
 TDK
Manufacturer SKU
 YFF18AC1C104MT0Y0N
4000 pcs.
0.11 €
0.00 € *
Currently not in stock, we will order for you
3-terminal filters
16 V
4000 MHz
SMD
-55 °C
125 °C
1 A
2 MHz
3-terminal filters, 90 MHz to 3 GHz, 1 A, 50 V, SMD, YFF18AC1H222MT0Y0N
Order No.:
 72D1491
Manufacturer:
 TDK
Manufacturer SKU
 YFF18AC1H222MT0Y0N
4000 pcs.
0.11 €
0.00 € *
Currently not in stock, we will order for you
3-terminal filters
50 V
3000 MHz
SMD
-55 °C
125 °C
1 A
90 MHz
3-terminal filters, 230 kHz to 3 GHz, 2 A, 6.3 V, SMD, YFF18AC0J105MT0Y0E
Order No.:
 72D1483
Manufacturer:
 TDK
Manufacturer SKU
 YFF18AC0J105MT0Y0E
4000 pcs.
0.11 €
0.00 € *
Currently not in stock, we will order for you
0.02 Ω
3-terminal filters
6.3 V
3000 MHz
SMD
-55 °C
125 °C
2 A
0.23 MHz
*incl. VAT plus shipping costs
