YFF18AC0J105MT0Y0E | TDK

3-terminal filters, 230 kHz to 3 GHz, 2 A, 6.3 V, SMD, YFF18AC0J105MT0Y0E

Order No.: 72D1483
EAN: 4099889077384
MPN:
YFF18AC0J105MT0Y0E
Series: VFF-AC

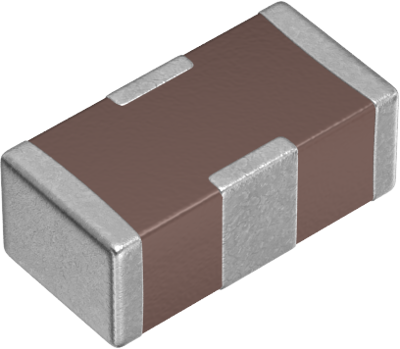

YFF18AC0J105MT0Y0E TDK Interference suppression filter Image 1

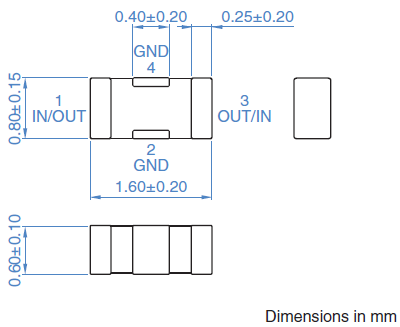

YFF18AC0J105MT0Y0E TDK Interference suppression filter Image 2

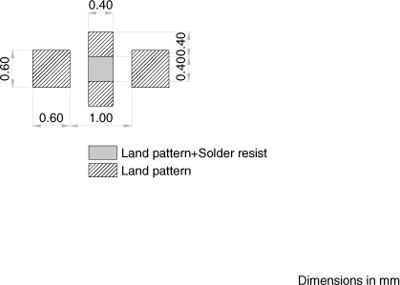

YFF18AC0J105MT0Y0E TDK Interference suppression filter Image 3

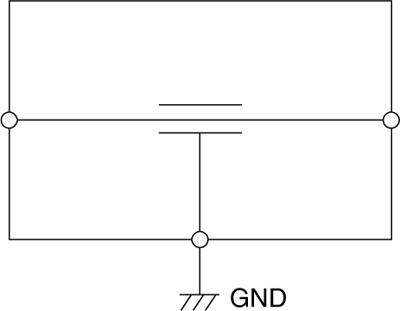

YFF18AC0J105MT0Y0E TDK Interference suppression filter Image 4
Image may differ
Unit Price (€ / pc.)
0.0393 € *
Standard delivery time from the manufacturer is: 26 Weeks
Total Price:
157.08 € *
*incl. VAT plus shipping costs
Subject to prior sale
4000 pcs.
0.0393 €

3-terminal filter, YFF18AC0J105MT0Y0E, TDK

The YFF18AC0J105MT0Y0E is a 3-terminal feed through filter surface-mounted component, which has a feed-through structure that direct current passes inside the component. This product`s structure makes a distance to GND short, and a parallel effect of the GND electrodes reduces ESL.

Features

  • Superior attenuation characteristic in wide bandwidth
  • Contributes to reduction in the number of decoupling MLCCs
  • AEC-Q200 compliant

Applications

  • EMC countermeasures and decoupling use in power lines for automotive applications such as ADAS
  • Autonomous driving system ECU
Technical specifications
Filter Property Value
min. operating temperature -55 °C
With fuse No
Rated Voltage 6.3 V
Connection SMD
Version 3-terminal filters
min. frequency 230 kHz
max. operating temperature 125 °C
max. frequency 3 GHz
integrated switch No
ohmic resistance 20 mΩ
Rated current 2 A
Logistics
Property Value
Customs tariff number 85363010
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
