MCZ1210CH240L2TA0G | TDK

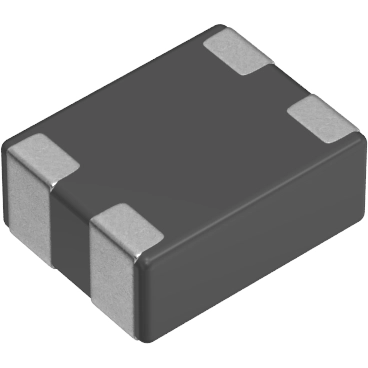

Common mode filter, 100 MHz, 100 mA, 5 VDC, 45 nH, SMD, MCZ1210CH240L2TA0G

default S
front S
side S
back S
default L
front L
side L
back L
Total price
(0.17 € * / pcs.)
0.00 €
Currently not in stock, we will order for you
Quantity
Price per unit*
4000 pcs.
0.17 €
*incl. VAT plus shipping costs
Description

Product by TDK at Bürklin Elektronik

Common mode filter, MCZ1210CH240L2TA0G, TDK

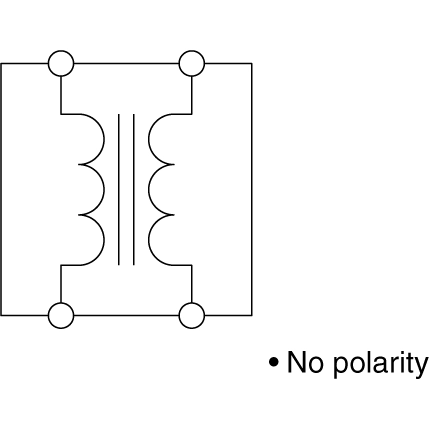

The MCZ1210CH240L2TA0G is a common mode filter high-speed differential signal line USB2.0, LVDS.

Features

  • Multilayer common mode filter for high-speed differential signal lines
  • Has EMC suppression by achieving wide frequency range differential mode transmission while ensuring common mode impedance with virtually no affect on the high-speed differential transmission line signal
  • Differential mode cutoff frequency is 2.5GHz typ
  • Operating temperature range: –40 to +85°C

Applications

  • High-speed differential interfaces
  • Servers, PCs, DSC, DVC, TV, game, wearable equipments
Technical specifications
ohmic resistance 1 Ω
Connection SMD
Version Common mode filter
Rated Voltage 5 VDC
Inductance per line 0.000045 mH
integrated switch No
max. frequency 100 MHz
max. operating temperature 85 °C
min. operating temperature -40 °C
With fuse No
Rated current 0.1 A
Show similar products (0)
Logistics
Customs tariff number 85363010
Original Packaging Reel with 4,000 pieces
Compliance
Guidline date 3/31/15
RoHS confom Yes
SVHC date 1/16/20
SVHC free Yes
Variations
1 item with 2 variations
Item description
Price list
Total
ohmic resistance
Version
Rated Voltage
max. frequency
Connection
min. operating temperature
max. operating temperature
Rated current
Common mode filter, 100 MHz, 100 mA, 5 VDC, 45 nH, SMD, MCZ1210CH240L2TA0G
Order No.:
 46D6758
Manufacturer:
 TDK
Manufacturer SKU
 MCZ1210CH240L2TA0G
4000 pcs.
0.17 €
0.00 € *
Currently not in stock, we will order for you
1 Ω
Common mode filter
5 VDC
100 MHz
SMD
-40 °C
85 °C
0.1 A
Common mode filter, 100 MHz, 100 mA, 5 VDC, 132 nH, SMD, MCZ1210CH900L2TA0G
Order No.:
 46D6759
Manufacturer:
 TDK
Manufacturer SKU
 MCZ1210CH900L2TA0G
4000 pcs.
0.25 €
0.00 € *
Currently not in stock, we will order for you
3 Ω
Common mode filter
5 VDC
100 MHz
SMD
-40 °C
85 °C
0.1 A
